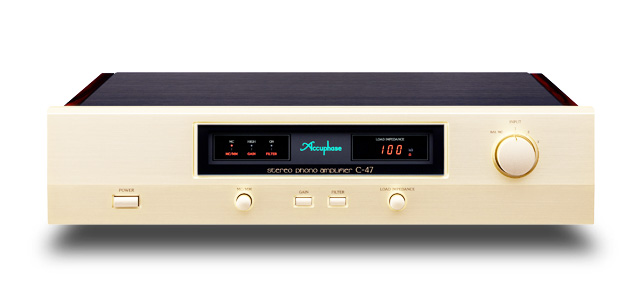

Accuphase C-47 Phono Preamplifier

Call TTVJ at 406-285-3910 to order

Product Code: ACC2000007

Call to Order 406 285 3910
Ask a Question

Description

The C-47 is the first phono amplifier of this series which realizes a fully balanced configuration from input to output. The resulting product not only is highly impervious to external noise, it also features a dedicated head amplifier optimized for the characteristics of MC and MM phono cartridges, and a high-accuracy equalizer amplifier, thereby ensuring precise equalization with a minimum of noise. A set of newly added dedicated balanced MC phono inputs enables balanced connection to the analog record player. By bringing out the full performance potential of each phono cartridge, the C-47 delivers a rich and deeply satisfying musical experience.

Low-noise fully balanced configuration
One dedicated balanced MC phono input and three sets of regular phono inputs
Separate settings memory for each input position
Balanced and line level output connectors
Balanced output polarity selector
Full mono construction
Separate toroidal power transformers for left and right channel
Low-noise regulated power supply circuitry unaffected by load fluctuations
High-accuracy phono equalizer with RIAA deviation of only ±0.3 dB
Load impedance settings for six MC and three MM phono cartridge types
7-segment LED indicator shows load impedance
Gain selector for low-output phono cartridges
Built-in subsonic filter
Disc equalizer assembly using glass cloth fluorocarbon resin PCBs with low dielectric constant and low losses
Gold-plated printed circuit boards
Aluminum top plate with hairline finish
