Magnetar UDP 900 MKII – Universal Disc Playback, Audiophile-Grade HIFI Stereo, and Multi-Channel Versatility
The Magnetar UDP900 is a Universal Disc player capable of handling almost any hard media format, from 4K UHD Blu-ray to SACD in both stereo and multi-channel, and, of course, standard DVDs and CDs. On top of that, play directly from USB drives or stream over a network.
Beyond its upstream versatility, it boasts a variety of multi-channel analog outputs. Built with audiophile-grade components, the MKII reflects a design that prioritizes both versatility and sound quality.
Contents
- Overview
- Advanced Image/Audio Processing Technology
- Exceptional Audio - Visual Experience
- Versatile Compatibility
- USB Audio
- Disc Formats
- Outputs
- Analog Audio Characteristics (2 Channel)
- Analog Audio Characteristics (7.1 Channel)
- General Specifications
Overview
Magnetar UDP 900 MKII now with improved drive unit that makes this model much quieter!
- Roon Ready in certification
- Fully Redesigned Audio utilizing dual ESS9038PRO DAC’s
- TMDS retiming on HDMI audio port
- Enhanced USB 3.0 system with isolated power
- XMOS supports PCM768/512 DSD
- Upgraded copper wiring and Amphenol/JST connectors
- Control 4 Support
- Crestron Support
- Wake-up on Lan
Advanced Image/Audio Processing Technology
High-quality copper-core wires are used throughout the device, the in-machine PCB connectors have been upgraded to JST and Amphenol brands, enhancing the stability and reliability of the connections.
Exceptional Audio - Visual Experience
The ESS9038PRO D/A decoder offers stereo and multi-channel outputs. With XMOS USB Audio input capable of handling PCM768 and DSD512, UDP900 MKII offers premium audio output. The TMDS retiming function on the HDMI AUDIO port also refines audio quality.
Versatile Compatibility
Adding a USB3.0 HUB chip and redesign the USB3.0 power supply to improve the compatibility and stability of the USB3.0 port, so as to better adapt to USB flash drives and hard drives. Also enhances the stability of data transmission and increases the transmission speed, thus achieving better sound and picture effects.
USB Audio
Upgrade USB AUDIO to PCM768 and DSD512, greatly improve the audio data transmission and processing capabilities, and provide higher-quality audio output.
Disc Formats
- UHD Blu-ray
- Blu-ray
- Blu-ray 3D
- DVD-Video
- DVD-Audio
- AVCHD
- SACD
- CD
- Kodak Picture CD
- CD-R/RW
- DVD±R/RW
- DVD±R DL
- BD-R/RE

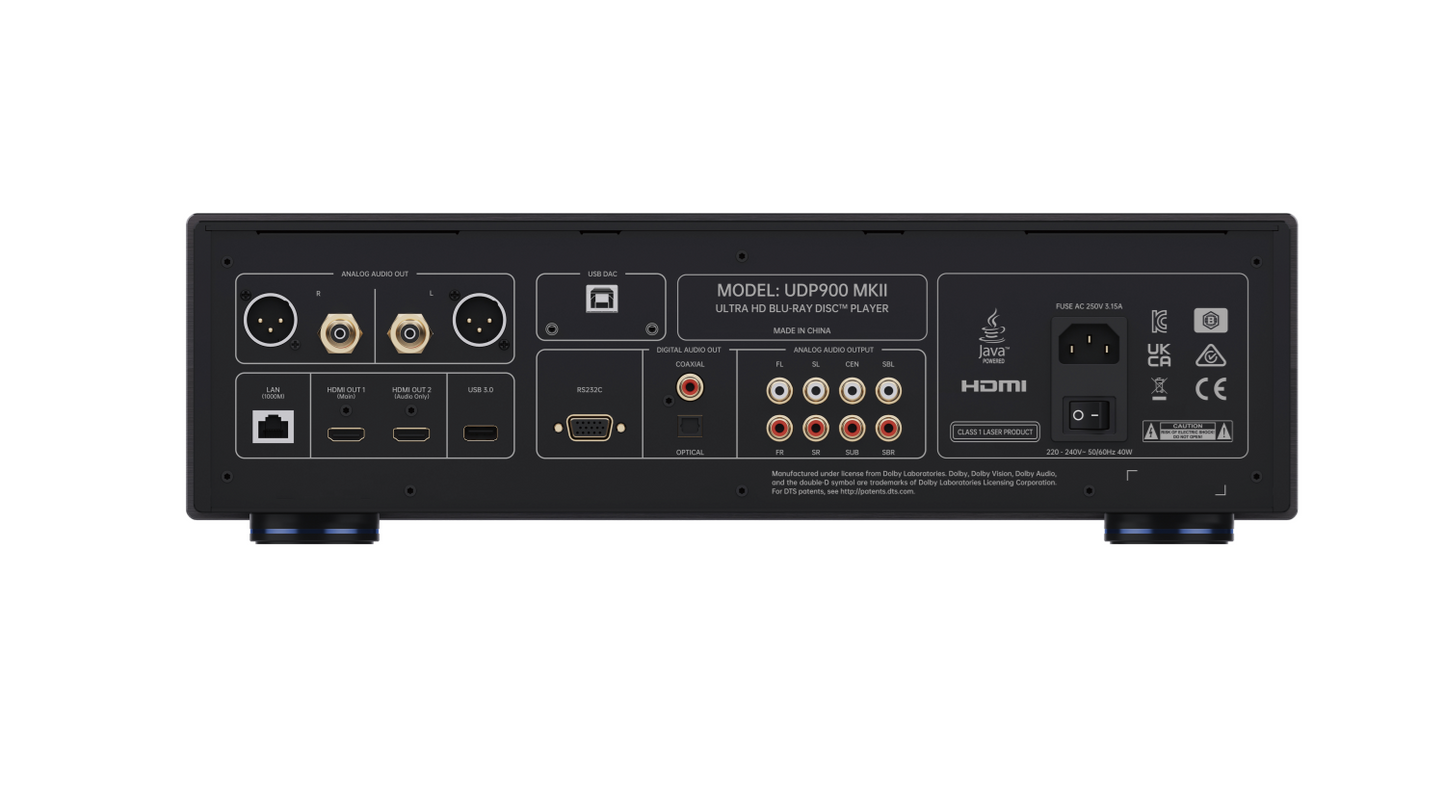

Outputs
- Analog Audio Output: 7.1 channel RCA, 2 channel RCA and Balanced XLR
- Digital Audio Output: Optical, Coaxial, HDMI
- HDMI audio: up to 7.1 channel /192kHz PCM, up to 5.1 channel DSD, Bitstream
- HDMI video: UHD 23.976/25/30/50/59.94/60hz, 1080 I/P, 720P, 576I/P, 480I/P, source direct.
Analog Audio Characteristics (2 Channel)
| Frequency Range | 20Hz ~ 50kHz (±0.01dB) |
| Signal – to – noise ratio | ≥120dB (RCA); ≥130dB (XLR) |
| Total Harmonic Distortion + Noise | ≤ 0.0005% |
| Output Level | (RCA) ≤3Vrms; (XLR) ≤6Vrms |
| Dynamic Range | ≥120dB (RCA); ≥130dB (XLR) |
| Channel Separation | ≥110dB (RCA); ≥130dB (XLR) |
Analog Audio Characteristics (7.1 Channel)
| Frequency Range | 20Hz ~ 50kHz (±0.01dB) |
| Signal – to – noise ratio | ≥120dB |
| Total Harmonic Distortion + Noise | ≤ 0.0005% |
| Output Level | ≤3Vrms |
| Dynamic Range | ≥120dB |
| Channel Separation | ≥110dB |
General Specifications
| Power supply | AC 110-120V ~ 50/60Hz / AC 220-240V ~ 50/60Hz |
| Power consumption | <40W, Standby<0.5W |
| Dimensions | 445 x 321 x 133 mm |
| Weight | 15.4kg |
| Operating Temperature | 5°C~ 35°C (41°F ~ 95°F) |
| Operating Humidity | 15% ~ 75% |
