A Balanced AAVA Line-Stage Preamplifier, With Phono If You Want It
Accuphase calls the C-2900 a Precision Stereo Preamplifier: a solid-state, fully balanced line-stage preamplifier, the fifth generation of its C-2800 series, sitting between the C-2300 and the flagship C-3900S. Accuphase has spent five decades refining the preamp's volume control. The C-2900 carries on technology from the C-3900, the previous flagship, and its volume control is Balanced AAVA: two balanced-connected AAVA circuits that set the level with no variable resistor in the signal path.
Accuphase states 21% lower noise than the C-2850 it replaced. Left and right channels have their own circuits and power supplies. As delivered it is a line stage; add the optional AD-2900 phono unit and the C-2900 handles MM and MC cartridges internally, with two turntable inputs and five MC load settings chosen from the front panel.
TTVJ is an authorized Accuphase dealer. You're buying through the brand's own dealer network, with advice from someone who has set up these components in real listening rooms.
Is It Right for You?
A Great Fit If You Want
- A line preamp that can add vinyl later: the AD-2900 phono unit installs inside, with two inputs for two tonearms and settings remembered for each.
- To feed two amplifiers: two balanced and two line outputs, for bi-amping or a subwoofer.
- A quiet background: 113 dB S/N (A-weighted) on the line and balanced inputs.
- Headphones as well: a discrete headphone amplifier with parallel push-pull output and low, mid and high level settings.
- To tame warped records: a 10 Hz subsonic filter.
Consider Something Else If You Need
- More than two balanced sources: the C-3900S has four XLR and six RCA inputs.
- Accuphase's lowest-noise preamp: the C-3900S uses Dual Balanced AAVA with ANCC (118 dB S/N).
- MM loading options: the AD-2900's MM input is fixed at 47 kΩ. Accuphase's C-57 phono amplifier offers 1, 47 or 100 kΩ.
- Tone controls or digital inputs: the C-2300 has a 4-band tone control and accepts the DAC-60 board.
- One box instead of separates: Accuphase's integrated amplifiers, such as the E-800S, E-700, E-4000 and E-3000, combine a preamp and power amp.
Design
Balanced AAVA Volume Control
AAVA (Accuphase Analog Vari-gain Amplifier) removes every variable resistor from the signal path. The volume knob is only a position sensor; the music never passes through it. AAVA sets the level by switching combinations of conversion circuits of different gain.
Balanced AAVA uses two AAVA circuits in a balanced connection. Accuphase says this lowers noise by roughly 20% against conventional preamplifiers.
Circuits and Construction
Left and right channels have separate unit amplifiers, mounted in 8 mm-thick hard aluminum frames; keeping the channels apart reduces interference and crosstalk. The circuit boards are glass-cloth fluorocarbon resin with gold-plated copper foil, in a modular layout, and logic-controlled relays handle signal switching.
The headphone amplifier is discrete, with parallel push-pull output stages.
Power Supply and Cabinet
Each channel has its own toroidal power transformer, and the supply uses four 10,000 µF filter capacitors (40,000 µF in total).
The chassis sits in a wood case with a mirror-polished natural grain finish, on high-carbon cast iron insulator feet.

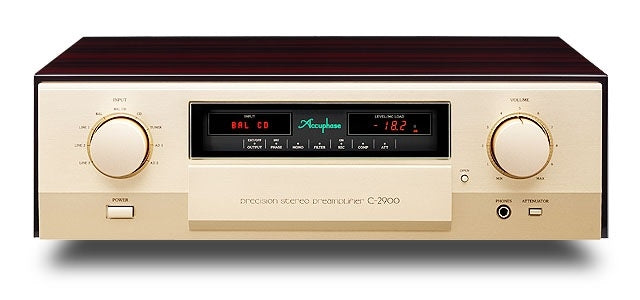

Controls
The volume sensor is machined from an aluminum block, and its motor and gears sit on a floating mechanism isolated from the chassis for quiet, smooth operation. A sub-panel holds the gain switch (12, 18 or 24 dB), balance, a 3-step loudness compensator (+2, +4 or +6.5 dB at 100 Hz), polarity set separately for each input, mono, the subsonic filter and an output selector for EXT PRE use and output operation.
A front-panel attenuator drops the level by 20 dB instantly, and the input and volume display can be switched off. The RC-250 remote, which also operates an Accuphase CD player, is supplied.
What Changed From the C-2850
The C-2900 replaced the C-2850 in 2021, in the same size chassis and with the same internal layout. Balanced AAVA cut noise by 21%: S/N rose from 111 to 113 dB and input-referred noise fell from −123 to −125 dBV. The AD-2900 phono unit is 29% quieter on MC than the AD-2850 and adds a 200 Ω MC load setting.
Adding Phono: The AD-2900
AD-2900 Phono Equalizer Unit (Optional)
| Availability | Sold separately: Accuphase AD-2900 Phono EQ Module |
|---|---|
| Installation | Slides into the C-2900's rear expansion slot and fastens with four screws (power off first). Adds 0.9 kg and 2 mm of depth. |
| Inputs | Two (AD1 and AD2) for two tonearms, chosen with the input selector; settings are remembered for each |
| Cartridge types | MM and MC, switched from the front sub-panel; separate MM and MC input circuits |
| Gain | MM 34 or 40 dB; MC 64 or 70 dB |
| MC load | 10, 30, 100, 200 or 300 Ω, selected from the front sub-panel |
| MM load | 47 kΩ (fixed) |
| Input sensitivity (rated output) | MM 5.0 mV (34 dB) or 2.5 mV (40 dB); MC 0.16 mV (64 dB) or 0.08 mV (70 dB) |
| S/N (input shorted, A-weighted) | MM 91 dB (34 dB gain) or 85 dB (40 dB); MC 79 dB (64 dB) or 73 dB (70 dB) |
| Input-referred noise | MM −137 dBV; MC −155 dBV |
| Total gain to main outputs | MM 52 or 58 dB; MC 82 or 88 dB (C-2900 gain at 18 dB) |
| Frequency response | 20 Hz–20 kHz: ±0.2 dB (MM 40 dB and MC); ±0.3 dB (MM 34 dB) |
| Circuit | Bipolar-transistor MC and J-FET MM input stages feeding a differential RIAA equalizer; fully separate left and right boards in an aluminum case |
| Also fits | Earlier Accuphase preamps, including the C-2850, C-2820, C-2450 and C-2420 (MC loads 10/30/100/300 Ω) and older models such as the C-2810, C-2800, C-2410 and C-290V (10/30/100 Ω); the 200 Ω setting needs the C-2900 |

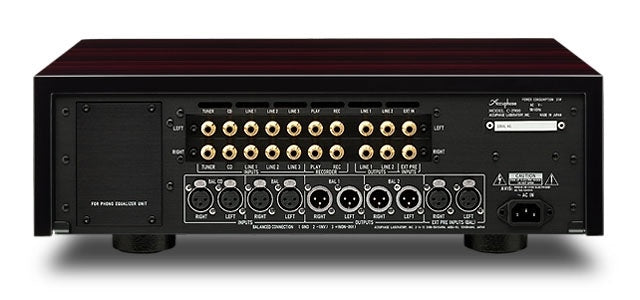

Connect It
Inputs and Outputs by Job
| Balanced sources (XLR) | 2 inputs: BAL CD and BAL |
|---|---|
| Line sources (RCA) | 5 inputs: TUNER, CD and LINE 1–3 |
| Turntable | No phono input as delivered. Install the AD-2900 for two phono inputs, or connect an external phono stage such as Accuphase's C-57 to a line or balanced input |
| Outputs to power amplifiers | 2 balanced (BAL 1, 2) and 2 line (LINE 1, 2); rated 2 V, maximum 7.0 V, 50 Ω output impedance, loads of 600 Ω or more |
| External preamp | EXT PRE inputs, balanced and line, for connecting another preamplifier |
| Recorder | PLAY in and REC out |
| Headphones | Front jack; 8 Ω or higher; 2 V into 40 Ω; level LOW, MID or HIGH (±10 dB around MID) |
Setup and Matching
- Gain: the gain switch offers 12, 18 or 24 dB, and the output reaches 7.0 V maximum. Accuphase's current power amps need between 0.80 V (A-48S) and 1.95 V (P-7500) for full output at their maximum gain, so drive is ample. If you only ever use the bottom of the volume range, a lower gain setting gives you more of the dial to work with.
- Placement: it measures 412 mm (16.2 in) deep, 414 mm with the AD-2900, and 156 mm (6.1 in) high, so allow extra depth for cables.
C-2900 vs. Accuphase's Other Line-Stage Preamplifiers
C-2900, C-3900S and C-2300
| C-2900 | C-3900S | C-2300 | |
|---|---|---|---|
| Volume control | Balanced AAVA | Dual Balanced AAVA with ANCC | Balanced AAVA |
| Balanced inputs | 2 | 4 | 2 |
| Line inputs | 5 | 6 | 5 |
| Balanced / line outputs | 2 / 2 | 2 / 2 | 1 / 2 |
| Phono | Optional AD-2900 unit | External (C-57) | Optional AD-60 board |
| Digital inputs | None | None | Optional DAC-60 board |
| Tone shaping | 3-step loudness | 5-step loudness | 4-band tone, loudness |
| S/N (A-weighted) | 113 dB | 118 dB | 111 dB |
| Size (W × H × D) | 477 × 156 × 412 mm | 477 × 156 × 412 mm | 465 × 150 × 405 mm |
| Weight | 24.2 kg | 25.3 kg | 19.3 kg |
Choose the C-2900 If You
- Want phono inside the preamp: the AD-2900 installs internally; the C-3900S has no phono option.
- Feed two amps balanced: two XLR outputs, where the C-2300 has one.
Choose the C-3900S If You
- Have many sources: four XLR and six RCA inputs, vs two and five.
- Want Accuphase's lowest-noise preamp: Dual Balanced AAVA with ANCC, 118 dB S/N.
Choose the C-2300 If You
- Want tone controls: 4-band, with selectable low and high frequencies.
- Want digital inputs in the preamp: the DAC-60 board option.
- Need a smaller, lighter unit: 19.3 vs 24.2 kg.
Not Sure Which to Choose?
Deciding between the C-2900, C-3900S and C-2300, or whether to add the AD-2900? Todd can talk it through with you.
Specifications
Accuphase C-2900 Precision Stereo Preamplifier Specifications
| Type | Solid-state, fully balanced line-stage preamplifier (Accuphase: Precision Stereo Preamplifier); optional AD-2900 phono unit |
|---|---|
| Volume control | Balanced AAVA; −20 dB attenuator |
| Frequency response | 20 Hz–20 kHz, +0/−0.2 dB; 3 Hz–200 kHz, +0/−3.0 dB (balanced and line) |
| Total harmonic distortion | 0.005% (20 Hz–20 kHz, rated output, all inputs) |
| Crosstalk | −80 dB (10 kHz) |
| S/N ratio (gain 18 dB, balanced and line) | 113 dB (A-weighted, input shorted); 110 dB (EIA); input-referred noise −125 dBV |
| Gain | 12, 18 or 24 dB (balanced/line in to balanced/line out); 0 dB to REC |
| Input sensitivity | 252 mV for rated output (gain 18 dB) |
| Input impedance | Balanced 40 kΩ; line 20 kΩ |
| Output | Rated 2 V, maximum 7.0 V, 50 Ω output impedance, load 600 Ω or more; REC 252 mV, load 10 kΩ or more |
| Inputs | 2 balanced (XLR), 5 line (RCA), EXT PRE (balanced and line), recorder PLAY; expansion slot for the AD-2900 |
| Outputs | 2 balanced, 2 line, recorder REC, headphones |
| Headphone output | Discrete; 8 Ω or higher; 2 V into 40 Ω; LOW / MID / HIGH |
| Loudness compensator | +2, +4 or +6.5 dB at 100 Hz |
| Subsonic filter | 10 Hz, −18 dB/octave |
| Phono | None built in; optional AD-2900 (see above) |
| Power requirements | 120 V, 220 V or 230 V AC, 50/60 Hz, as marked on the rear panel |
| Power consumption | 31 W; 35 W with the AD-2900 |
| Dimensions (W × H × D) | 477 × 156 × 412 mm (18.8 × 6.1 × 16.2 in); depth 414 mm with the AD-2900 |
| Weight | 24.2 kg (53.4 lb) net; 25.1 kg (55.3 lb) with the AD-2900; 31 kg (69 lb) in carton |
| In the box | RC-250 remote commander; ASL-10B audio cable (1 m); AC power cord; cleaning cloth |
