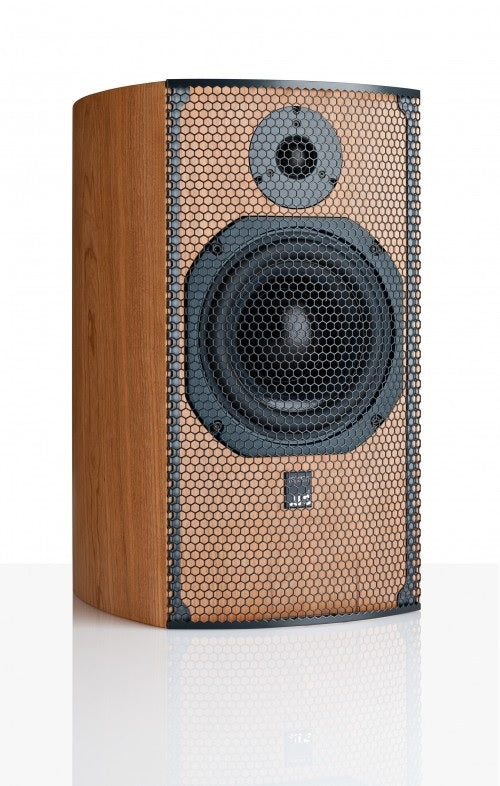

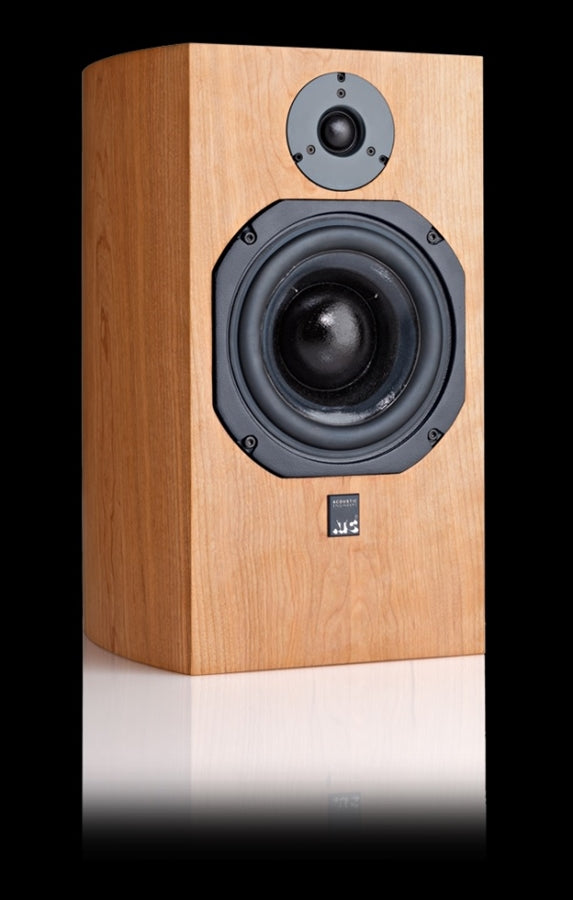

SCM19
Overview
New ATC designed and built 25mm soft dome HF unit with precision alloy wave guide.
“SL” spec bass driver with 75mm integral soft dome.
9kg optimised short-coil/long gap motor assembly.
In-house, hand-wound precision flat wire coil.
Flat impedance curve allowing easy load for amplifiers.
6 year warranty.
“Superlative clarity; excellent phase coherence; sublime bass.” Hi-Fi Choice Magazine, September 2014
Drivers: HF ATC 25mm Neodymium soft dome, Mid/LF ATC 150mm SL
Matched Response: ±0.5dB
Frequency Response (-6dB): 54Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Sensitivity: 85dB @ 1W @ 1metre
Max SPL: 108dB
Recommended Power Amplifier: 75 to 300 Watts
Nominal Impedance: 8 Ohm
Crossover Frequency: 2.5kHz
Connectors: Binding Posts/4mm Plugs, bi-wire
Cabinet Dimensions (HxWxD): 438x265x300mm (grill adds 34mm to depth)
Weight: 17.8kg
