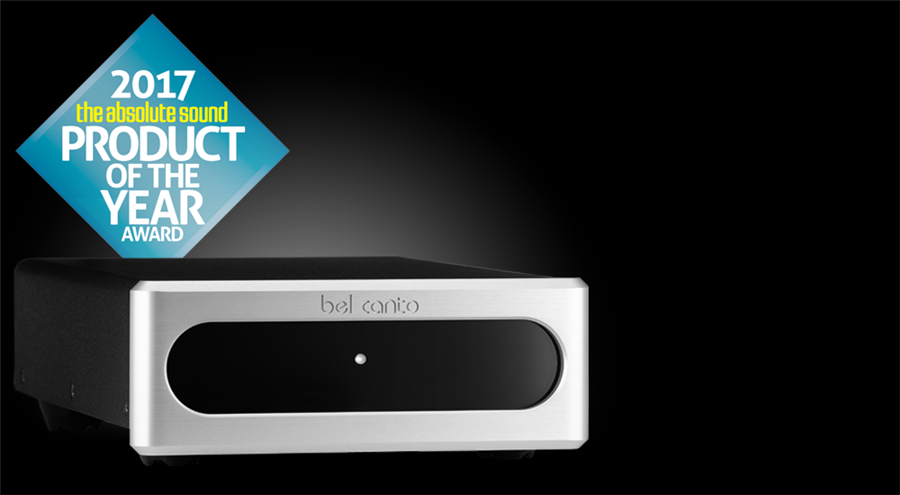

The Bel Canto e.One REF601M Mono Power Amplifier is a high-performance monoblock amplifier engineered for audiophiles seeking both power and precision in their audio systems. Combining the warmth and clarity of Class A with the efficiency and dynamic impact of Class D technology, the REF601M delivers an authoritative 600 watts into 4 ohms and 300 watts into 8 ohms per channel, with a peak output current of 27 amperes. This ensures it can drive even the most demanding loudspeakers with ease and finesse.
The REF601M merges the pure, detailed treble of Class A with the robust, efficient power delivery of advanced Class D designs, resulting in a sound that is both engaging and natural.
A proprietary, balanced high common mode rejection input stage preserves the dynamic integrity and minute details of recordings, ensuring music is rendered with exceptional fidelity and realism.
The amplifier offers both balanced XLR and single-ended RCA inputs, allowing flexible integration into a wide range of high-end audio systems.
These premium connectors are chosen for their minimal sonic signature, ensuring an open, grain-free sound throughout the frequency range.
Users can choose between 27dB or 33dB of voltage gain via an internal switch, providing further system matching flexibility.
Housed in a compact chassis (8.5" x 3.5" x 12", weighing 15 lbs), the REF601M features a robust SMPS 1200 power supply and NCore technology based on the Hypex NC500 module, ensuring ultra-low noise, high efficiency, and cool operation.
Power Output: 600W (4 ohms), 300W (8 ohms) per channel
Minimum Load: 2 ohms
Frequency Response: 0Hz–50kHz (+/-3dB)
Dynamic Range: 121dB
THD+N: 0.003% at 1W, 1kHz, 4 ohms
IMD (CCIF): 0.0003% at 1W, 14:15kHz, 4 ohms
Damping Factor: >1000
Output Impedance at 100Hz: <8 milliohms
Input Impedance: 100K ohms (RCA), 200K ohms (XLR)
Power Consumption: 22W (on), 0W (off)
The Bel Canto e.One REF601M is celebrated for its ability to deliver a deeply immersive soundstage, with exceptional clarity, presence, and control across all frequencies. Its design ensures that every nuance of the music is faithfully reproduced, making it a top choice for discerning listeners who demand both musicality and technical excellence.
The REF601M stands out as a compact yet powerful monoblock amplifier that seamlessly blends cutting-edge technology with audiophile-grade sound quality, making it a compelling addition to any high-end audio system.
