For more than 35 years Dynavector have established an enviable reputation for producing affordable high quality moving coil cartridges. Notably high output models that are designed to work with MM inputs negating the necessity for equipment change or the use of setup devices required for low output cartridges. The outstanding performance of the Dynavector high output moving coil cartridges can be attributed to the exclusively Dynavector designed coil winding machine capable of utilizing extremely fine coil wire providing a high output to mass ratio.
Features and Improvements of 20X2 phono cartridge

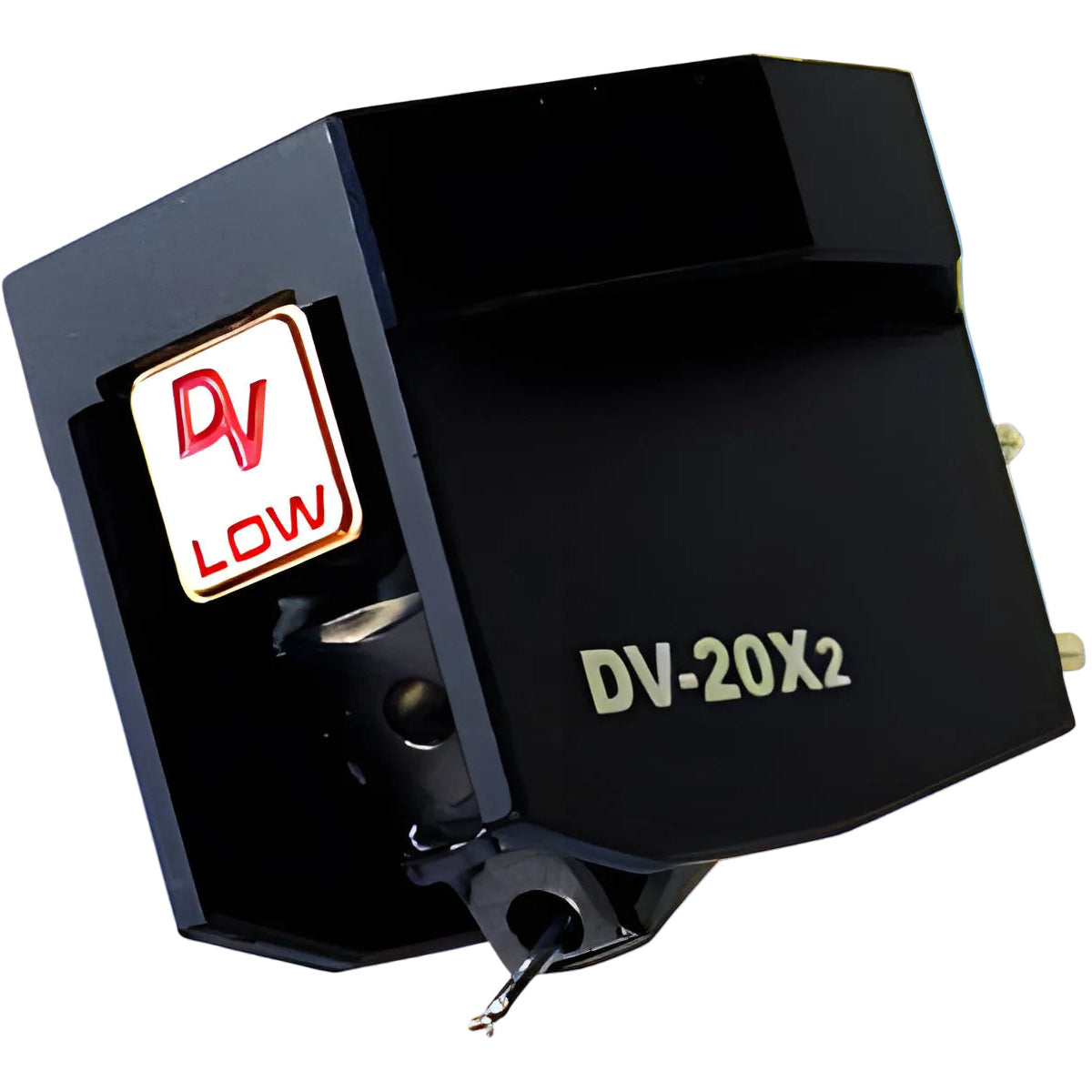

DV 20X2 phono cartridge has a solid aluminum alloy body and a rigid magnet construction similar to XX-2 MkII moving coil cartridge. The cantilever is a 6mm length of hard aluminum pipe with a Micro-Ridge stylus. The magnetic flux damping and softened magnetism along with powerful neodymium magnets gives the 20X2-H a healthy 2.8 mV output - suitable for most MM inputs. The 20X2-L has an output of 0.3 mV ideal for most MC phono stages.
Both high and low versions of their 20X2 phono cartridge are available ensure for the optimum end result. The high output model is well suited to valve preamplifiers or electronics that only offer MM inputs whilst the low output version offers superb performance when combined with dedicated moving coil inputs.
Specifications
Type
High/Low output moving coil cartridge with flux damper and softened magnetism
Output Voltage
2.8 mV / 0.3 mV (at 1KHz, 5cm/sec.)
Channel Separation
25 dB (at 1KHz)
Channel balance
1.0 dB (at 1KHz)
Frequency response
20 - 20,000 Hz（±2dB）
Compliance
12 mm/N
Tracking force
1.8 - 2.2 g
Impedance
150 ohms / 5 ohms
Recommended load impedance
1,000 ohms / > 30 ohms
Cantilever
6mm length hard aluminum pipe
Stylus tip
Micro Ridge Nude diamond
Weight
9.2 g
