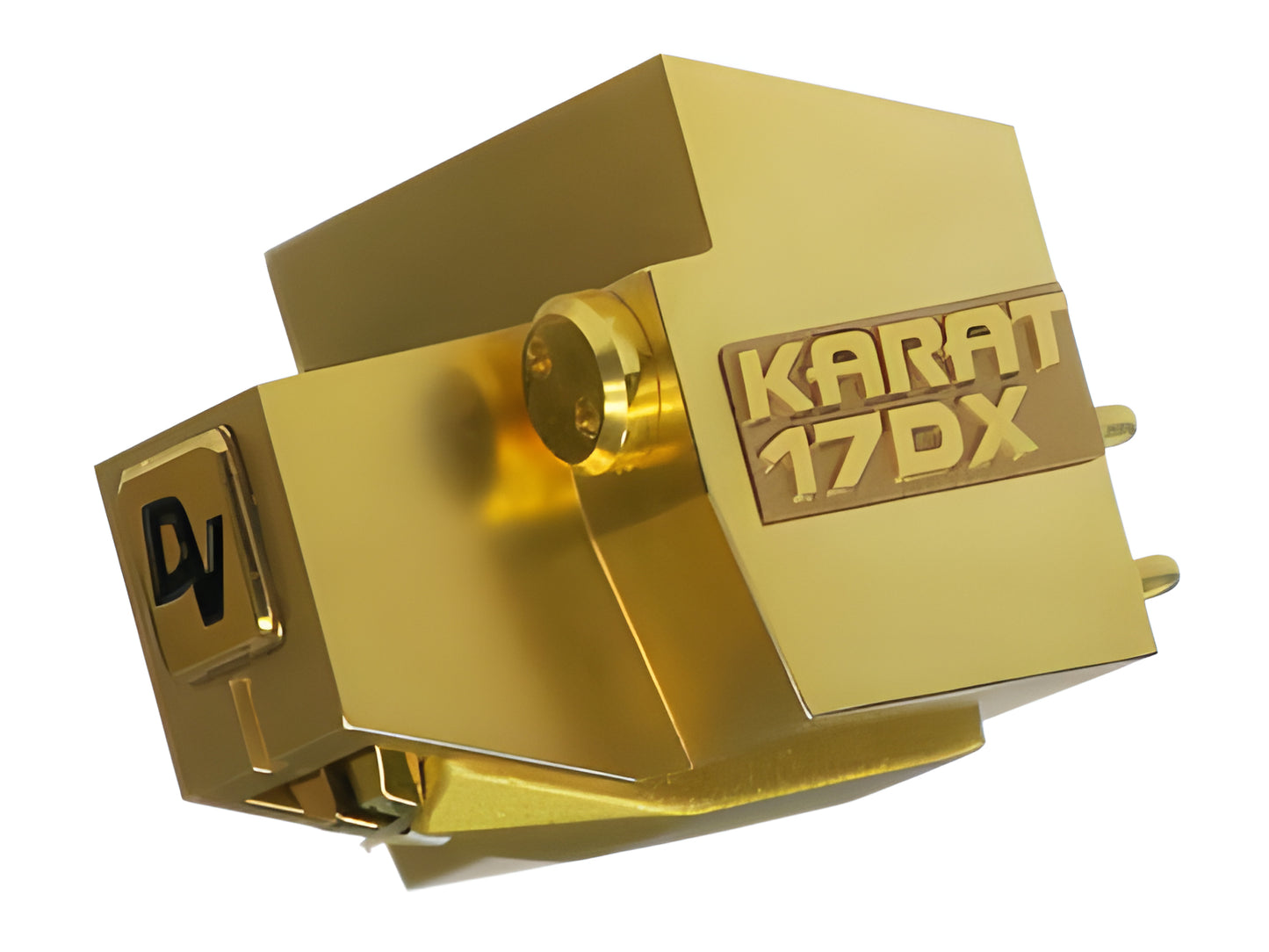

Drawing on Dynavector's 'dispersion theory' that produced the original world first KARAT series Dynavector are indeed proud to announce the entirely new 17DX KARAT Diamond phono cartridge. As in the past KARAT series, the frequency response of the new KARAT 17DX at 20 to 20,000 Hz is ruler flat providing an extremely accurate groove tracking ability. However, several new features will ensure that the new 17DX phono cartridge will shortly gain the same legendary status and soon surpass its predecessors.
Features and Improvements of KARAT 17DX phono cartridge

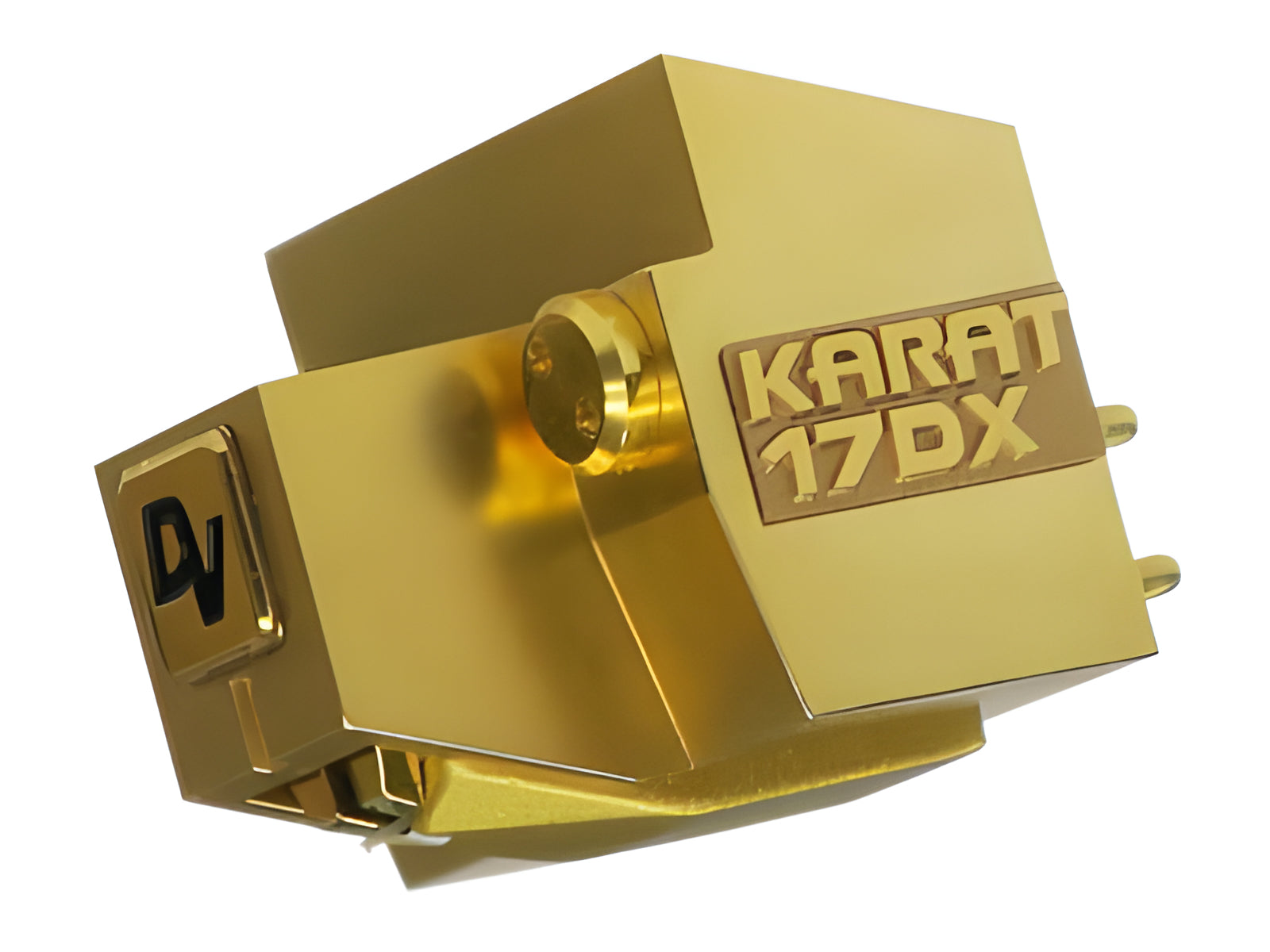

17DX detail
The rationale for the new KARAT 17DX phono cartridge was to significantly improve upon the now legendary original KARAT moving coil cartridge series. After exhaustive listening and technical research, the decision was made to incorporate a body machined from solid brass, Samarium-cobalt magnets for lower magnetic resistance, unmatched coil winding techniques, the incredible 1.7mm long cantilever with Micro Ridge stylus all combining in a brand-new KARAT 17DX phono cartridge that will delight the listener, providing clear and articulate reproduction of analog recordings without a hint of harshness in the high frequency range.
frequency response of phono cartridge 17DX
Karat 17DX showed a ruler flat response from 100 Hz to 30KHz of under ± 0.5 dB
Specifications
Type
low output moving coil cartridge with flux damper and softened magnetism
Output Voltage
0.3 mV (at 1KHz, 5cm/sec.)
Channel Separation
25 dB (at 1KHz)
Channel balance
1.0 dB (at 1KHz)
Frequency response
20 - 20,000 Hz（±1dB）
Compliance
15 mm/N
Tracking force
1.8 - 2.0 g
Impedance
32 ohms
Recommended load impedance
> 100 ohms
Cantilever
1.7mm length solid diamond
Stylus tip
Micro-Ridge
Weight
11.0 g
