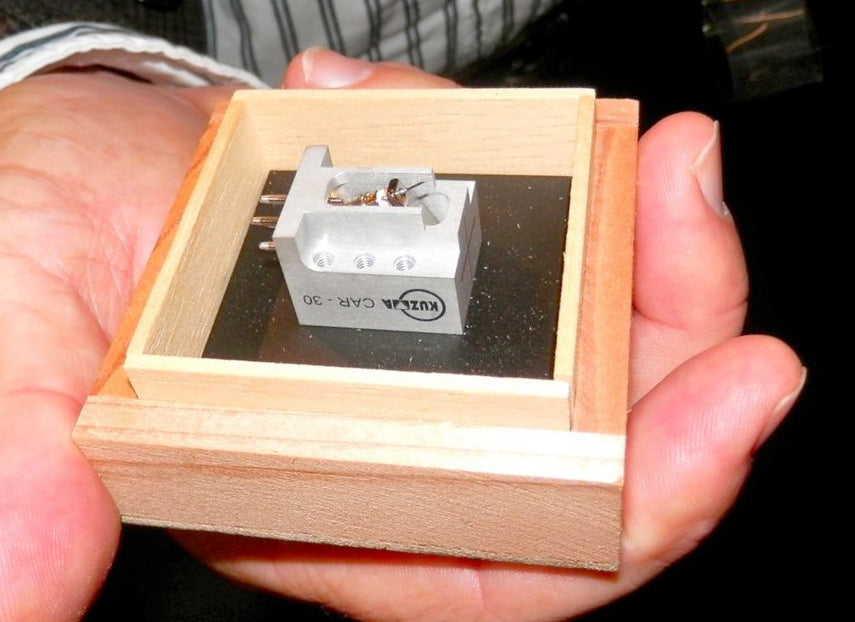

The Kuzma CAR 30 is a low‑output moving‑coil phono cartridge that targets the sweet spot of the high‑end market, combining precise groove tracing with a smooth, transparent tonal balance.
Design and construction
-

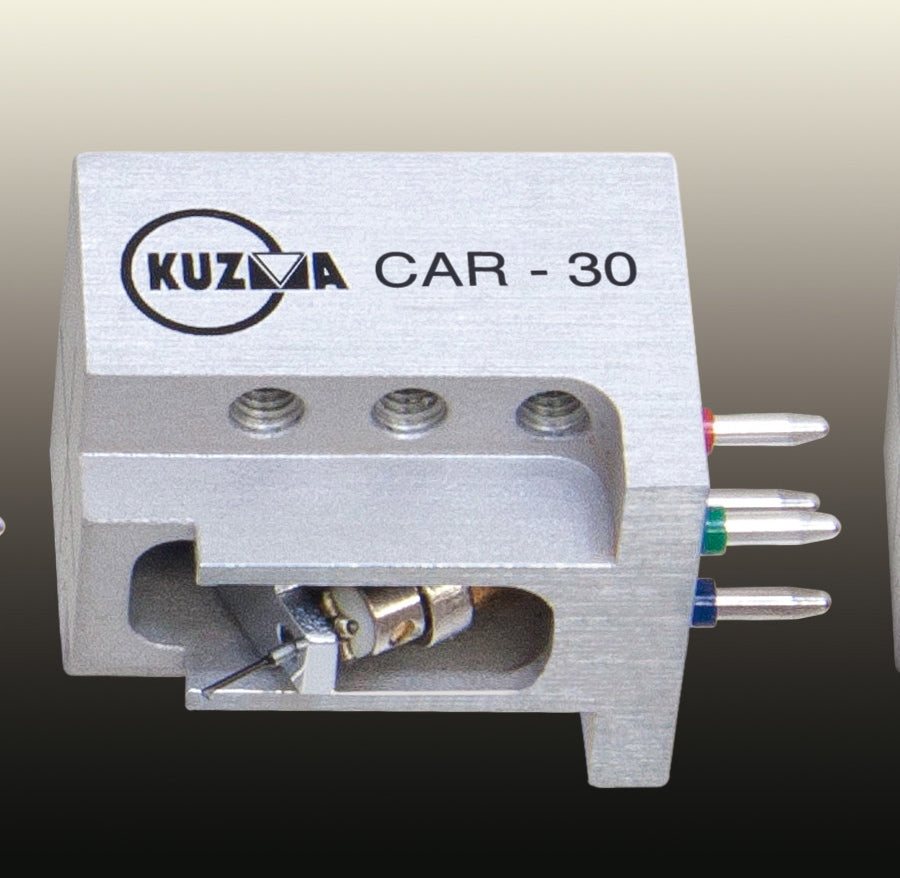

The CAR 30 uses a rigid aluminum‑alloy body with brass elements to provide an inert platform for the generator, helping the microridge diamond trace the groove with minimal added coloration.
-
Its motor is built around 5N copper coils and a boron cantilever, a combination chosen to maximize detail retrieval while maintaining structural stability at the stylus tip.
-
The cartridge weighs 17 g, giving it a substantial physical presence that suits medium to higher effective‑mass tonearms often used in serious analog setups.
Key technical features
-
The CAR 30 is a low‑output MC design rated at approximately 0.3 mV, intended for dedicated moving‑coil phono stages with appropriate gain.
-
Frequency response extends from 10 Hz into the mid‑30 kHz range, with channel balance specified at better than 1 dB and separation above the mid‑20 dB region at 1 kHz.
-
Recommended tracking force is 2.0 g, with trackability exceeding 70 µm at that force, and internal impedance is around 4–6 Ω with a suggested load below or above 100 Ω depending on implementation.
Sonic character
-
Reviewers describe the CAR 30 as smooth and even‑handed, with a notably clean, extended treble, lucid midband, and tight, tuneful bass that avoids drawing attention to any particular frequency region.
-
The microridge stylus and boron cantilever contribute to fine high‑frequency detail, low distortion, and stable imaging, while maintaining an overall natural, unforced presentation.
-
In system context it tends to sound neutral and transparent rather than overtly warm or analytical, making it a flexible choice across a wide range of music and partnering components.
System matching and use case
-
With its relatively low output and moderate compliance, the CAR 30 mates best with quality MC phonostages and well‑engineered tonearms capable of handling its 17 g mass.
-
Positioned in the mid‑tier of Kuzma’s cartridge lineup, it is aimed at listeners seeking an upgrade from entry and lower midrange MCs to a cartridge that can reveal the character of records and downstream gear without sounding edgy.
-
Its tracking ability and refined stylus profile also make it suitable for demanding, densely cut records where accurate groove tracing and low noise floor are priorities.
