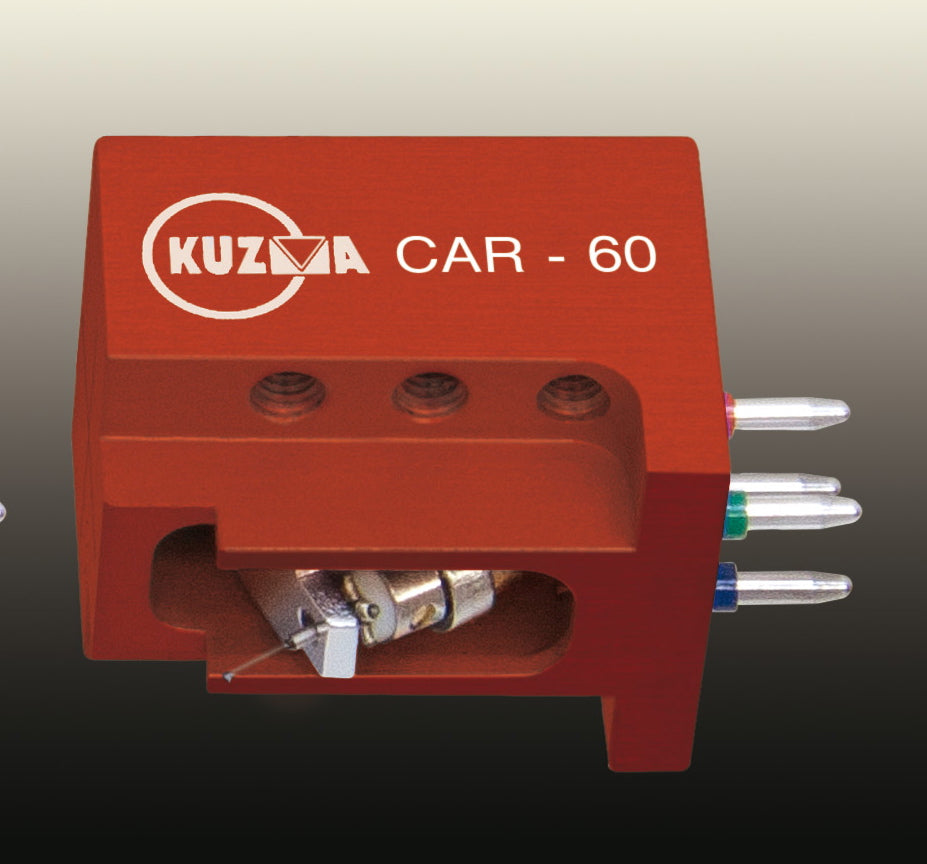

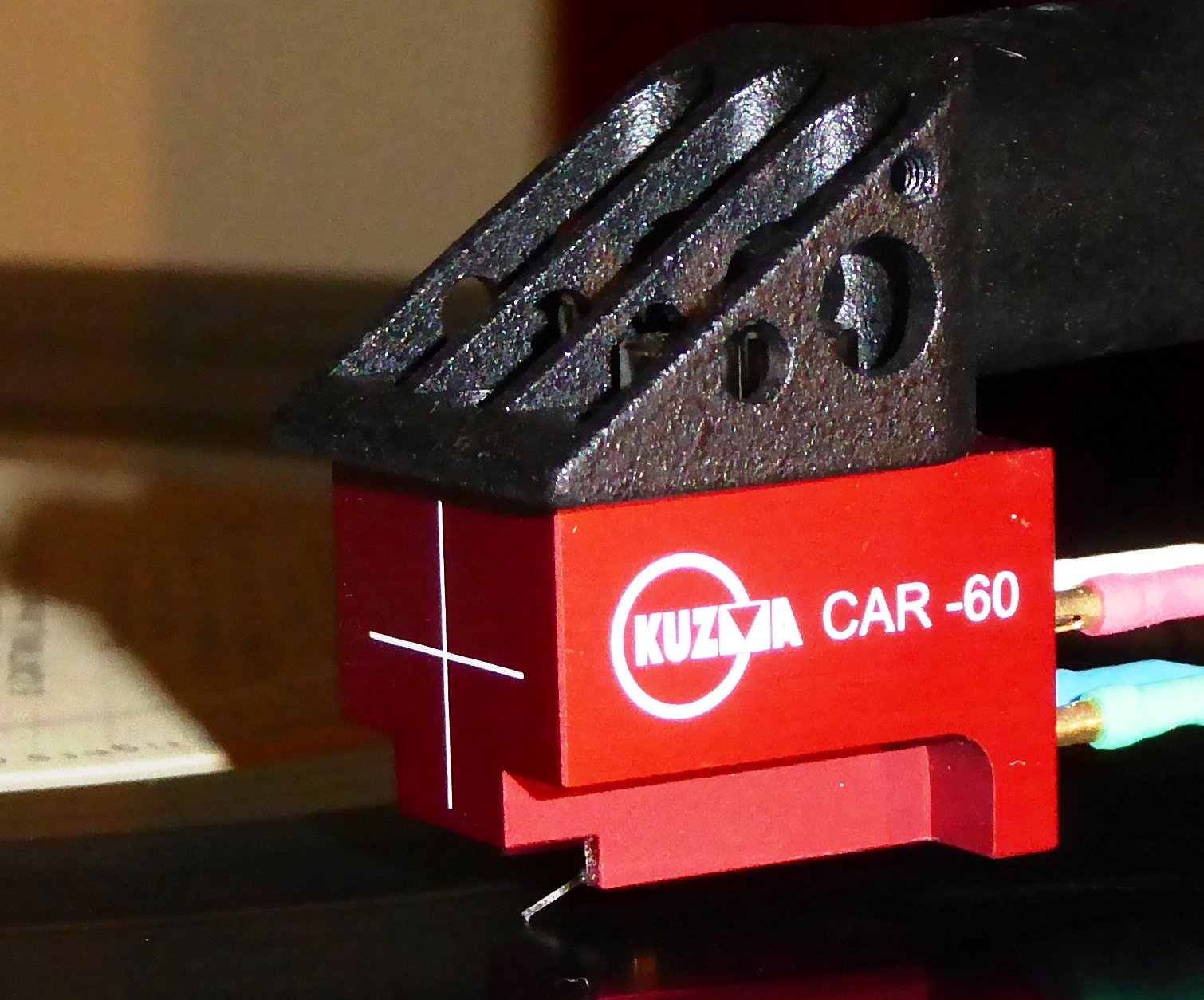

The Kuzma CAR 60 is Kuzma’s flagship low‑output moving‑coil phono cartridge, designed to extract maximum information from vinyl with exceptional resolution, control, and musicality.
Key design highlights
-
Flagship model in the CAR series, developed with a Japanese manufacturer with over 50 years of cartridge experience, then built to Kuzma’s own specifications.
-
Solid, machined body with a blocky, high‑mass 17 g form factor that provides a rigid mechanical interface to the tonearm and excellent vibration control.
-
One‑piece diamond cantilever with micro‑ridge stylus, chosen for extreme stiffness, low resonance and superior groove contact, giving very high detail retrieval without etch or glare.
-
4N silver coil windings and a low‑impedance generator (6 Ω) delivering a 0.3 mV output, tuned for quiet backgrounds, wide bandwidth and high dynamic contrast.
Sonic character
-
Voiced for clarity, tonal saturation and dynamic drive, combining deep, well‑controlled bass, highly articulated midband texture and finely resolved high frequencies.
-
Presents recordings with strong energy and rhythmic snap, but maintains natural timbre and flow rather than spotlighting detail for its own sake.
-
Capable of very high resolution at both macro and micro‑dynamic levels, giving an immersive, “live” sense of presence when correctly matched and set up in a suitably massy tonearm.
Technical snapshot
-
Type: Low‑output moving‑coil
-
Output: 0.3 mV (3.54 cm/s, 1 kHz)
-
Internal impedance: 6 Ω; recommended load: > 100 Ω
-
Frequency response: 10 Hz – 45 kHz
-
Compliance: 10 cu; trackability > 70 μm at 2.0–2.1 g tracking force
-
Stylus: Micro‑ridge; cantilever: solid diamond; coil wire: 4N silver; weight: 17 g
Positioning
-
A statement‑level cartridge aimed at top‑tier analog systems, the CAR 60 is intended for heavy, rigid tonearms (such as Kuzma’s own 4Point series) and high‑quality MC phonostages that can make full use of its low output and wide bandwidth.
-
Suited to listeners seeking ultimate analog performance—maximum information retrieval, low distortion and long‑term listening comfort—from a design that sits at the pinnacle of Kuzma’s cartridge lineup.
