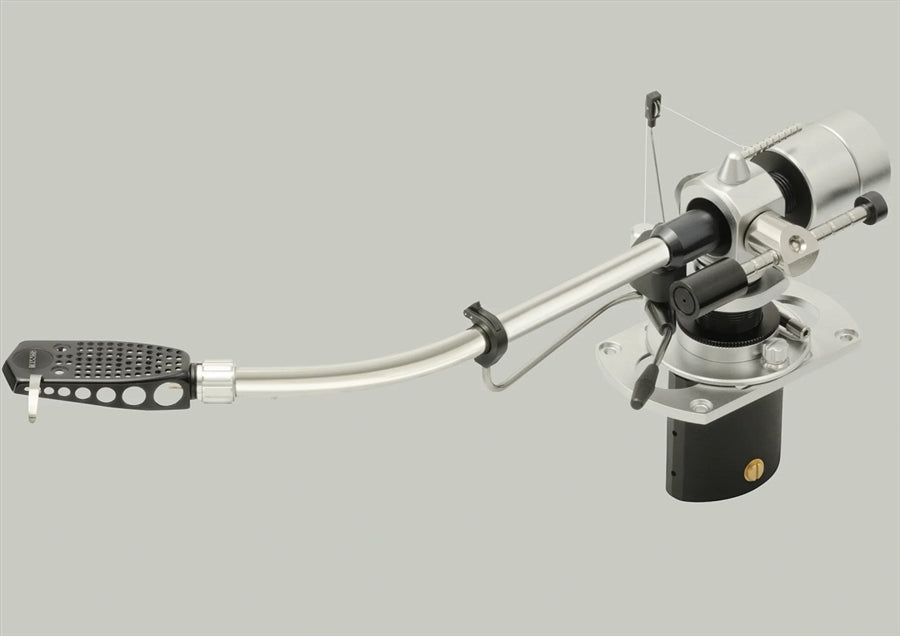

The Model M2-9R precision tonearm developed by popular demand offers the design and engineering excellence associated with SME in a compact package.
As a member of the M2 family this tonearm is built by enthusiasts for enthusiasts and among its extensive features include, vertical and horizontal tracking adjustment, tungsten balance weights housed in satin chromed brass sleeves. Double draw-pin detachable headshell with azimuth adjustment and height adjustment by thumb wheel enabling its use with wide range of both cartridges and turntables.
As a member of the M2 family this tonearm is built by enthusiasts for enthusiasts and among its extensive features include, vertical and horizontal tracking adjustment, tungsten balance weights housed in satin chromed brass sleeves. Double draw-pin detachable headshell with azimuth adjustment and height adjustment by thumb wheel enabling its use with wide range of both cartridges and turntables.
| Series M2-9R Dimensions | |
|---|---|
| A – Distance from pivot to stylus | 233,20 mm |
| B – Distance from pivot to turntable centre | 215,40 mm |
| C – Cartridge fixing centres | 12,70 mm |
| D – Offset angle | 23,63° |
| E – Linear offset | 93,47 mm |
| F – Overhang | 17,80 mm |
| G – Height above mounting surface | max. 87,0 mm min. 63,0 mm |
| H – Mounting surface to underside of headshell | max. 67,40 mm min. 43,40 mm |
| J – Depth below mounting surface | 46,0 mm |
| K – Balance weight radial clearance | 73,0 mm |
