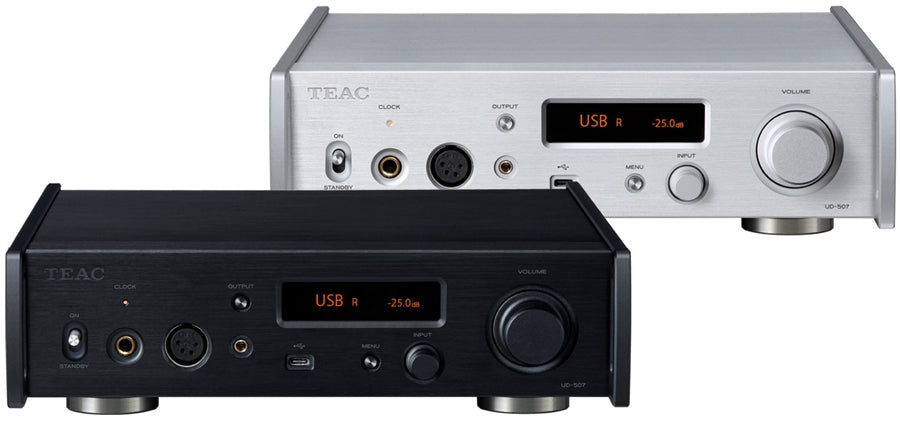

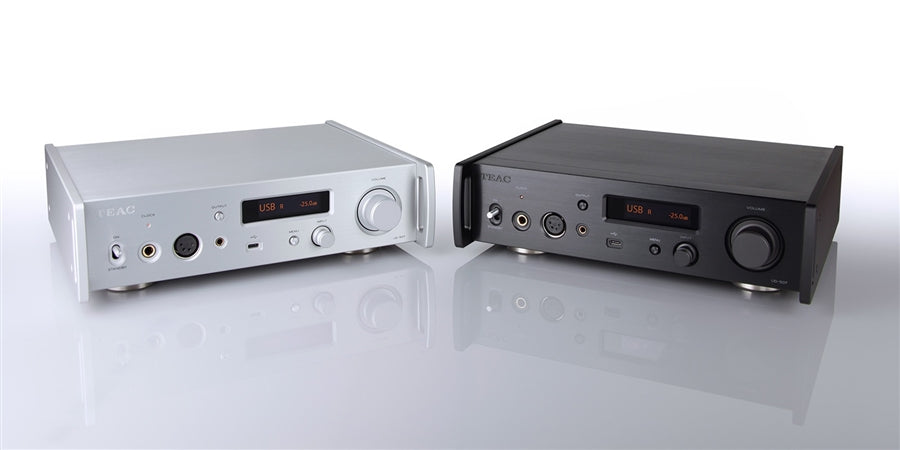

The TEAC UD-507 is a high-end, compact digital-to-analog converter (DAC), preamplifier, and headphone amplifier, designed for audiophiles seeking versatility and premium sound quality. It features TEAC’s proprietary “TRDD5” discrete DAC, an in-house FPGA-based design that supports up to 32-bit/384kHz PCM and DSD512 audio, delivering a clear soundstage and accurate imaging. The unit incorporates technology from TEAC’s flagship 700 Series, packaged in a compact A4-sized chassis.
The TEAC UD-507 is a redesigned preamp, USB DAC, and headphone amplifier that brings high-end audio quality to a compact, A4-size footprint. Inspired by TEAC's 700 series, it features the proprietary “TRDD 5” discrete DAC, delivering an immersive, high-resolution audio experience. Equipped with a fully balanced dual monaural headphone amplifier, high-quality preamp, and a variety of inputs, the UD-507 ensures unmatched versatility for any audiophile.
Features
Proprietary “TRDD 5” discrete DAC
Fully balanced dual monaural headphone amplifier
TEAC-HCLD2 output buffer circuit for powerful current transmission

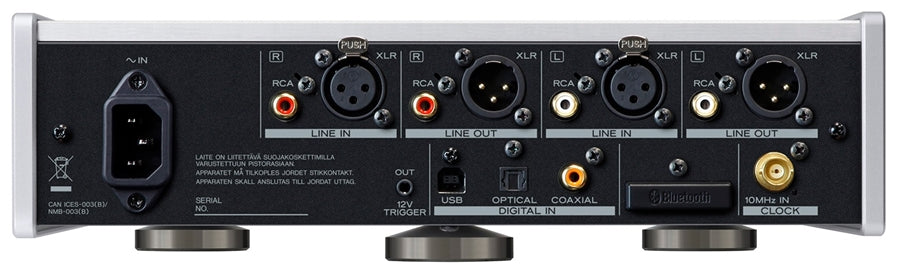

5 digital inputs and 2 analog inputs (RCA, XLR)
MQA full decoder (supports all digital inputs except Bluetooth)
Bluetooth receiver with LDAC, aptX HD, and multi-point connection
USB Asynchronous Transfer Method with 44.1kHz and 48kHz clocks
External 10MHz clock input for even higher sound quality
Headphone amplifier with 4-pin XLR and Pentaconn jack
Designed for the audiophile seeking the best in compact audio equipment, the TEAC UD-507 brings studio-quality sound right into your home. Its powerful dual monaural construction ensures precise channel separation, while the high current output buffer and up-conversion features offer dynamic sound reproduction. Whether you're enjoying digital streaming, analog vinyl, or headphones, the UD-507 meets your needs for premium audio performance.
Specs
Supported formats: PCM 16/24/32 bit, DSD up to 22.5MHz
Digital inputs: USB Type-C, USB Type-B, Coaxial, Optical, Bluetooth
Analog inputs: RCA, XLR
Output: XLR balanced, RCA unbalanced
Headphone output: 1200mW (balanced)
Dimensions: 290(W) x 85(H) x 249(D) mm
Weight: 4.9kg
