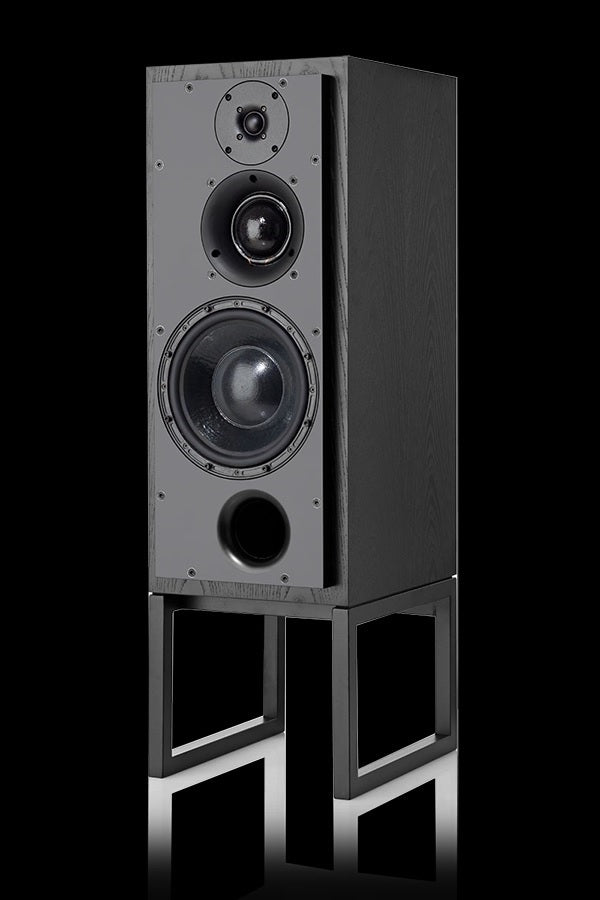

ATC SCM100PSL Passive Classic Speakers

ATC SCM100PSL Passive Classic Speakers

Regular price $23,999.00 USD
Regular price $23,999.00 USD Sale price $23,999.00 USD
Sale Sold out
Item may qualify for free US Shipping.
Finish
Quantity
View full details

ATC SCM100PSL Passive Classic: The Shallowest SCM100, Ready for Your Amplifier

Bring your own amplifier: the SCM100PSL is the 12-inch three-way loudspeaker in the middle of ATC's Classic range, and at 530 mm deep it is the shallowest of the four SCM100 versions. ATC designed it for top-quality systems.

SCM100SL is ATC's own name for this passive model; the SL refers to the Super Linear magnet in its bass driver. With 88 dB sensitivity and an 8 Ω nominal load, it needs a capable amplifier. Also available as the active SCM100ASL.

Sold as a pair with stands, in 14 finishes, and covered by a 6‑year warranty once registered with ATC.

Design3-way passive Classic, on stand
Sensitivity88 dB, 8 Ω nominal
Amplifier100 to 1,500 W recommended
Bass314 mm Super Linear, 35 Hz (−6 dB)
Midrange75 mm soft dome, 380 Hz to 3.5 kHz
Max. SPL115 dB continuous at 1 m

TTVJ is an authorized ATC dealer. Every unit we sell is brand new, and Todd's advice comes from setting up ATC loudspeakers in real listening rooms.

Is It Right for You?

A Great Fit If You Want

  • Freedom to choose your amplifier now and change it later.
  • The shallowest SCM100: 530 mm deep, on its supplied stand.
  • A dedicated 75 mm soft-dome midrange covering 380 Hz to 3.5 kHz, so voices and the core of most instruments come from one driver.
  • Bass to 35 Hz from ATC's 12-inch Super Linear driver.
  • A pair matched to within ±0.5 dB, so the stereo image stays centred.

Consider Something Else If You Need

  • Amplifiers built in, one per driver, and bass to 32 Hz: the active SCM100ASL. See below.
  • One floorstanding cabinet with no stand: the SCM100PSLT. See below.
  • A narrower cabinet for a smaller room: the SCM50PSLT, 304 mm wide, with a 9-inch bass driver.
  • Deeper bass, more output and higher sensitivity: the SCM150PSL, with 25 Hz, 117 dB and 91 dB.
  • A low-powered amplifier: ATC's recommended minimum is 100 W.

Design

Midrange and Tweeter

ATC's 75 mm soft dome covers 380 Hz to 3.5 kHz on its own, and ATC credits it, as in the smaller SCM50, with much of this speaker's accuracy, transparency and dynamics. The 25 mm tweeter above it was recently upgraded, together with the port, and ATC says the changes improved every aspect of performance.

12-Inch Super Linear Bass

ATC's professional-grade 12-inch (314 mm) driver with its Super Linear magnet, reaching 35 Hz (−6 dB).

Classic Cabinet

The ported cabinet is 834 mm tall and 400 mm wide; with no amplifier pack at the back, it needs only 530 mm of depth. The supplied 200 mm stand brings it to 1,034 mm overall.

Amplifier and Connections

Amplifier Matching

ATC recommends an amplifier of 100 to 1,500 W. Its passive crossover divides the signal at 380 Hz and 3.5 kHz, and the binding posts accept 4 mm banana plugs. The crossover gives broad, symmetrical dispersion and, ATC says, excellent amplitude and phase behaviour across the audio band.

The Four SCM100 Versions

What Differs

All four use the same drivers: ATC's 75 mm soft-dome midrange, a 12-inch Super Linear bass driver and a 25 mm tweeter, with 115 dB maximum output and the same finishes. The letters in each name tell you which is which: A for active, P for passive and T for tower. You'll also see them shortened to SCM100A, P, AT and PT. They differ in cabinet and in how they are driven:

Feature SCM100ASL SCM100PSL SCM100ASLT SCM100PSLT
Cabinet Classic, on supplied stand Classic, on supplied stand Floorstanding tower Floorstanding tower
Overall height 1,034 mm with stand 1,034 mm with stand 1,070 mm 1,070 mm
Width × depth 400 × 585 mm (with amplifier) 400 × 530 mm 397 × 560 mm 397 × 560 mm
Weight 58.5 kg with stand 52.1 kg with stand TBA 58.5 kg
Amplification Built in, 350 W tri-amp Your own, 100 to 1,500 W Built in, 350 W tri-amp Your own, 100 to 1,500 W
Bass (−6 dB) 32 Hz 35 Hz 32 Hz 35 Hz
What you connect A preamp or source with volume control, to an XLR input Speaker cable to binding posts A preamp or source with volume control, to an XLR input Speaker cable to binding posts
Sensitivity / load Not applicable (active) 88 dB, 8 Ω Not applicable (active) 88 dB, 8 Ω
Power outlet One per speaker None (passive) One per speaker None (passive)
Included per pair 2 stands, 2 grilles, 8 spikes 2 stands, 2 grilles, 8 spikes 2 grilles, 8 spikes, 2 power cables 2 grilles, 8 spikes

Active or Passive?

  • Active (ASL, ASLT): amplifiers built in, one per driver, and bass to 32 Hz.
  • Passive (PSL, PSLT): your own amplifier, from 100 to 1,500 W.

Classic or Tower?

  • Classic (ASL, PSL): a lower overall height, 1,034 mm against 1,070 mm; the passive Classic is the shallowest at 530 mm.
  • Tower (ASLT, PSLT): one cabinet with no stand; the active Tower is 25 mm shallower than the active Classic.

SCM100PSL vs Other ATC Passive Three-Ways

SCM50, SCM100 and SCM150

Feature SCM50PSLT SCM100PSL SCM150PSL
Format Floorstanding tower Classic, on stand Classic, on stand
Bass driver 234 mm Super Linear 314 mm Super Linear 375 mm Super Linear
Midrange / tweeter 75 mm soft dome / 25 mm 75 mm soft dome / 25 mm 75 mm soft dome / 25 mm
Sensitivity 85 dB 88 dB 91 dB
Impedance 8 Ω (5.5 Ω minimum) 8 Ω 8 Ω
Recommended amplifier 100 to 1,500 W 100 to 1,500 W 100 to 1,500 W
Linearity (±2 dB) 70 Hz to 20 kHz 65 Hz to 17 kHz 60 Hz to 17 kHz
Bass (−6 dB) 40 Hz 35 Hz 25 Hz
Max. SPL (1 m) 112 dB 115 dB 117 dB
Size (H × W × D) 1,003 × 304 × 470 mm 834 × 400 × 530 mm, plus 200 mm stand 884 × 498 × 568 mm, plus 200 mm stand
Weight 45.5 kg 52.1 kg with stand 67.2 kg

Choose the SCM50PSLT If You

  • Need the narrowest cabinet of the three, 304 mm wide, for a smaller room.

Choose the SCM100PSL If You

  • Want bass to 35 Hz from a 12-inch driver in a cabinet about 100 mm narrower than the SCM150's.

Choose the SCM150PSL If You

  • Want the deepest bass, most output and highest sensitivity of the three: 25 Hz, 117 dB and 91 dB.

Not Sure Which to Choose?

Torn between the SCM100PSL and another SCM100 version (SCM100ASL, SCM100ASLT, SCM100PSLT), or between it and the smaller SCM50PSLT or the larger SCM150PSL? Todd can talk it through with you.

Available Finishes

Choose Your Finish

Standard veneers Cherry, Walnut, Oak, Black Ash
Standard paints Satin Black, Satin White
Premium veneers (up-charge) Rosewood, European Crown Cut Walnut, Pippy Oak, Burr Magnolia, Burr Poplar
High gloss (up-charge) Clear High Gloss Veneer, Piano Black, Piano White

Setup

Placement and Installation

  • Handling: each speaker weighs 52.1 kg with its stand, so unpack and position them with a second person.
  • Placement: start about 1 m (3 ft) from the side walls and 2 m (6.5 ft) from the wall behind, and keep them out of corners. The two speakers and your seat should form an equilateral triangle.
  • Height: the midrange dome should sit at, or slightly below, ear level.
  • Spikes: eight M8 spikes with nuts come with each pair, to couple the stands to the floor.
  • Cable: at least 2.5 mm² (about 13 AWG) per conductor, and heavier for runs over 10 m (33 ft).

Specifications

ATC SCM100PSL

Type 3-way passive Classic stand-mounted loudspeaker
Drivers HF 25 mm; Mid 75 mm ATC soft dome; LF 314 mm Super Linear
Amplitude linearity (±2 dB) 65 Hz to 17 kHz
Frequency response (−6 dB points) 35 Hz to 22 kHz
Matched response ±0.5 dB between the two speakers of a pair
Dispersion ±80° coherent horizontal, ±10° coherent vertical
Max. continuous SPL (1 m) 115 dB
Crossover frequencies 380 Hz and 3.5 kHz
Sensitivity (sine wave) 88 dB at 1 W, 1 m
Nominal impedance 8 Ω
Recommended amplifier power 100 to 1,500 W
Connections Binding posts, accept 4 mm banana plugs
Dimensions (H × W × D) 834 × 400 × 530 mm (32.83 × 15.75 × 20.87 in); stands add 200 mm to height
Weight 52.1 kg (114.9 lb) per speaker, including stand
Included (per pair) 2 speaker stands, 2 fabric-wrapped grilles, 8 M8 × 1.25 mm stand spikes and nuts
Finishes Standard veneers, standard paints, premium veneers and high gloss; see Available Finishes
Sold as Pair
Warranty 2 years; 6 years when the warranty card is returned to ATC
Made in UK
