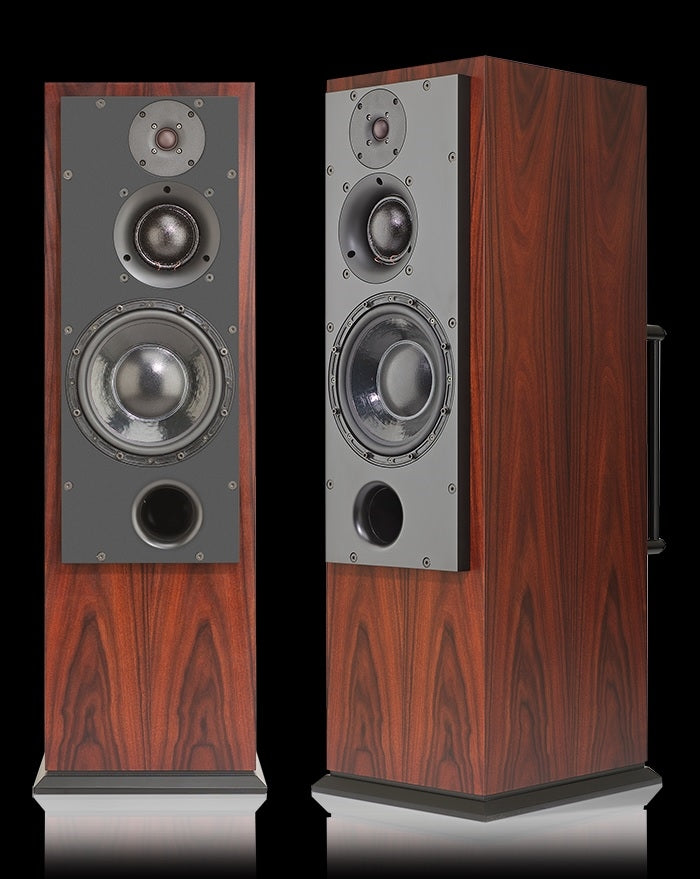

ATC SCM50PSLT Passive Tower: A Narrow Three-Way Floorstander for Your Amplifier
The SCM50PSLT is the passive version of ATC's 9-inch three-way tower loudspeaker, made for home listeners who want to choose their own amplifier. One cabinet per side stands 1,003 mm tall and just 304 mm wide on spikes, so there is no stand to buy or set up.
Prefer the amplifiers built in? The SCM50ASLT shares this cabinet. For a monitor on a stand, see the SCM50PSL Classic.
A pair comes with grilles and spikes, in 14 finishes, with a 6‑year warranty once registered with ATC.
TTVJ is an authorized ATC dealer. Every unit we sell is brand new, and Todd's advice comes from setting up ATC loudspeakers in real listening rooms.
Is It Right for You?
A Great Fit If You Want
- A three-way tower for a narrow space: 304 mm wide.
- An amplifier of your choice, now and as your system grows.
- An easy load: 8 Ω nominal, 5.5 Ω at its lowest.
- Bass to 40 Hz from a 9-inch Super Linear driver.
- Voices and most instruments from one 75 mm soft-dome midrange, which covers 380 Hz to 3.5 kHz.
Consider Something Else If You Need
- Amplifiers built in, one per driver, and bass to 38 Hz: the active SCM50ASLT. See below.
- A shallower, lighter passive SCM50: the SCM50PSL Classic, 425 mm deep and 41.1 kg on a 250 mm stand. See below.
- A lighter, shallower passive tower: the SCM40, 31 kg and 305 mm deep, with a 164 mm bass driver.
- 35 Hz bass, 115 dB output and 88 dB sensitivity: the SCM100PSLT, with a 12-inch driver.
- A low-powered amplifier: at 85 dB sensitivity, ATC's minimum is 100 W.
Design
Midrange and Tweeter
Most of the SCM50's accuracy, transparency and dynamics comes from its 75 mm soft dome, ATC says, with an upgraded 25 mm tweeter above it.
9-Inch Super Linear Bass
A 234 mm (9-inch) Super Linear driver takes the bass to 40 Hz (−6 dB). Its motor's rings of special magnetic material cut third-harmonic distortion by 10 to 15 dB between 100 Hz and 3 kHz, by ATC's measurements of the technology.
Tower Cabinet
The ported tower is 1,003 mm tall, 304 mm wide and 470 mm deep, on the supplied spikes. In passive form, ATC says, it gives broad, symmetrical dispersion with excellent amplitude and phase behaviour, and the port, reshaped alongside the tweeter upgrade, improved every aspect of performance.
Amplifier and Connections
Amplifier Matching
ATC recommends an amplifier of 100 to 1,500 W, and warns that an underpowered amplifier driven into distortion can damage the speaker, so choose one with power in hand. The passive crossover divides the signal at 380 Hz and 3.5 kHz. The binding posts take bare wire or 4 mm banana plugs; use speaker cable of at least 2.5 mm² (about 13 AWG) per conductor, and heavier for runs over 10 m (33 ft).
The Four SCM50 Versions
What Differs
All four use the same drivers: ATC's 75 mm soft-dome midrange, a 9-inch Super Linear bass driver and a 25 mm tweeter, in a cabinet 304 mm wide, with 112 dB maximum output and the same finishes. The letters in each name tell you which is which: A for active, P for passive and T for tower. TTVJ's listings use the shorter SCM50A, SCM50P, SCM50AT and SCM50PT. The four differ in cabinet and in how they are driven:
| Feature | SCM50ASL | SCM50PSL | SCM50ASLT | SCM50PSLT |
|---|---|---|---|---|
| Cabinet | Classic, on supplied stand | Classic, on supplied stand | Floorstanding tower | Floorstanding tower |
| Overall height | 967 mm with stand | 967 mm with stand | 1,003 mm | 1,003 mm |
| Depth | 480 mm (with amplifier) | 425 mm | 470 mm | 470 mm |
| Weight | 48.9 kg | 41.1 kg | 51 kg | 45.5 kg |
| Amplification | Built in, 350 W (200/100/50 W) | Your own, 100 to 1,500 W | Built in, 350 W (200/100/50 W) | Your own, 100 to 1,500 W |
| Bass (−6 dB) | 38 Hz | 40 Hz | 38 Hz | 40 Hz |
| What you connect | A preamp or source with volume control (XLR), plus mains power | Speaker cable to binding posts | A preamp or source with volume control (XLR), plus mains power | Speaker cable to binding posts |
| Sensitivity / load | Not applicable (active) | 85 dB, 8 Ω | Not applicable (active) | 85 dB, 8 Ω |
| Included per pair | 2 stands, 2 grilles, 8 spikes | 2 stands, 2 grilles, 8 spikes | 2 grilles, 8 spikes | 2 grilles, 8 spikes |
Active or Passive?
- Active (ASL, ASLT): amplifiers built in, one per driver, and bass to 38 Hz.
- Passive (PSL, PSLT): your own amplifier, from 100 to 1,500 W.
Classic or Tower?
- Classic (ASL, PSL): a 717 mm monitor on its own 250 mm stand, 967 mm tall overall.
- Tower (ASLT, PSLT): a single 1,003 mm cabinet on spikes, with no separate stand.
SCM50PSLT vs Other ATC Passive Three-Ways
SCM40, SCM50 and SCM100
| Feature | SCM40 | SCM50PSLT | SCM100PSLT |
|---|---|---|---|
| Format | Floorstanding tower | Floorstanding tower | Floorstanding tower |
| Bass driver | 164 mm short coil | 234 mm Super Linear | 314 mm Super Linear |
| Midrange / tweeter | 75 mm soft dome / 25 mm | 75 mm soft dome / 25 mm | 75 mm soft dome / 25 mm |
| Sensitivity | 85 dB | 85 dB | 88 dB |
| Impedance | 8 Ω | 8 Ω (5.5 Ω minimum) | 8 Ω |
| Recommended amplifier | 75 to 300 W | 100 to 1,500 W | 100 to 1,500 W |
| Bass (−6 dB) | 48 Hz | 40 Hz | 35 Hz |
| Max. SPL (1 m) | 112 dB | 112 dB | 115 dB |
| Size (H × W × D) | 980 × 370 × 305 mm | 1,003 × 304 × 470 mm | 1,070 × 397 × 560 mm |
| Weight | 31 kg | 45.5 kg | 58.5 kg |
Choose the SCM40 If You
- Want a lighter, shallower tower, 31 kg and 305 mm deep, that ATC rates for amplifiers from 75 W.
Choose the SCM50PSLT If You
- Want bass to 40 Hz from a 9-inch Super Linear driver in the narrowest cabinet of the three, 304 mm wide.
Choose the SCM100PSLT If You
- Want deeper bass, more output and higher sensitivity: 35 Hz, 115 dB and 88 dB.
Not Sure Which to Choose?
Weighing the SCM50PSLT against the other SCM50 versions, or against the SCM40 or SCM100PSLT? Todd can talk it through with you.
Available Finishes
Choose Your Finish
| Standard veneers | Cherry, Walnut, Oak, Black Ash |
|---|---|
| Standard paints | Satin Black, Satin White |
| Premium veneers (up-charge) | Rosewood, European Crown Cut Walnut, Pippy Oak, Burr Magnolia, Burr Poplar |
| High gloss (up-charge) | Clear High Gloss Veneer, Piano Black, Piano White |
Setup
Placement and Installation
- Handling: each speaker weighs 45.5 kg, so unpack and position them with a second person.
- Placement: start about 1 m (3 ft) from the side walls and 2 m (6.5 ft) from the wall behind, and keep them out of corners. The two speakers and your seat should form an equilateral triangle.
- Height: the midrange dome should sit at, or slightly below, ear level.
- Spikes: eight M8 spikes with nuts come with each pair, to couple the speakers to the floor.
Specifications
ATC SCM50PSLT
| Type | 3-way passive floorstanding loudspeaker |
|---|---|
| Drivers | HF 25 mm ATC SH25-76S; Mid 75 mm ATC soft dome (SM75-150S); LF 234 mm Super Linear |
| Amplitude linearity (±2 dB) | 70 Hz to 20 kHz |
| Frequency response (−6 dB points) | 40 Hz to 25 kHz |
| Matched response | ±0.5 dB between the two speakers of a pair |
| Dispersion | ±80° coherent horizontal, ±10° coherent vertical |
| Max. continuous SPL (1 m) | 112 dB |
| Crossover frequencies | 380 Hz and 3.5 kHz |
| Sensitivity (sine wave) | 85 dB at 1 W, 1 m |
| Nominal impedance | 8 Ω (5.5 Ω minimum) |
| Recommended amplifier power | 100 to 1,500 W |
| Connections | Binding posts, accept 4 mm banana plugs |
| Bi-wire or tri-wire terminals | TBA |
| Dimensions (H × W × D) | 1,003 × 304 × 470 mm (39.49 × 11.97 × 18.50 in) |
| Weight | 45.5 kg (100.3 lb) per speaker |
| Included (per pair) | 2 fabric-wrapped grilles, 8 M8 × 1.25 mm spikes and nuts |
| Finishes | Standard veneers, standard paints, premium veneers and high gloss; see Available Finishes |
| Sold as | Pair |
| Warranty | 2 years; 6 years when the warranty card is returned to ATC |
| Made in | UK |
Order Your ATC SCM50PSLT Passive Tower
As an authorized ATC dealer, TTVJ handles your order personally, from choosing the finish to delivery. Reach Todd by phone or message to:
- Confirm current pricing and availability
- Discuss a trade-in of your current speakers
- Ask about financing and shipping
