ATC SCM40 Passive Tower: A Dedicated Midrange in a Shallow, Sealed Floorstander
A sealed three-way floorstanding loudspeaker with ATC's own 75 mm soft-dome midrange, the SCM40 is the largest passive model in ATC's Entry range and pairs with a suitably powerful amplifier of your choice. With good sources and well-made recordings it sounds precise, quick and revealing in a way few speakers in its class manage, with a clarity usually found in much more expensive designs.
ATC designs and builds all three drivers itself, including a dual-suspension 25 mm tweeter with a precision alloy waveguide. Also available as the active SCM40A.

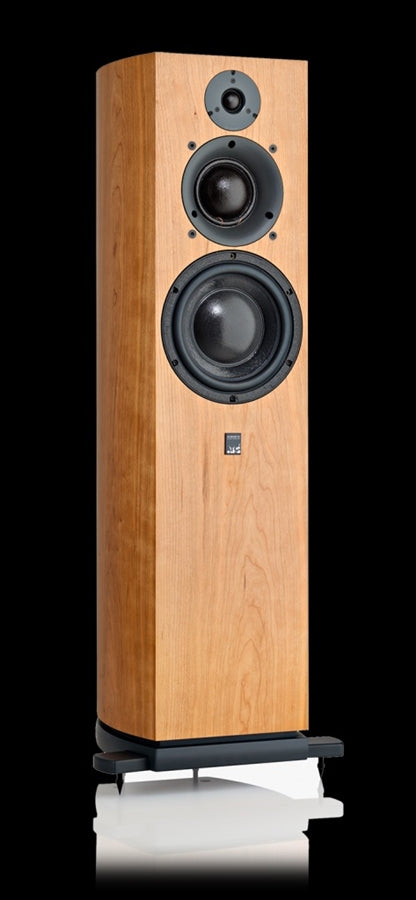

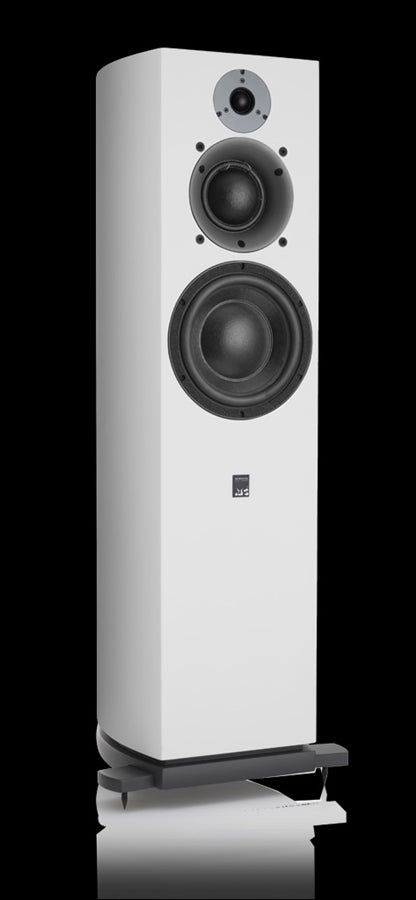

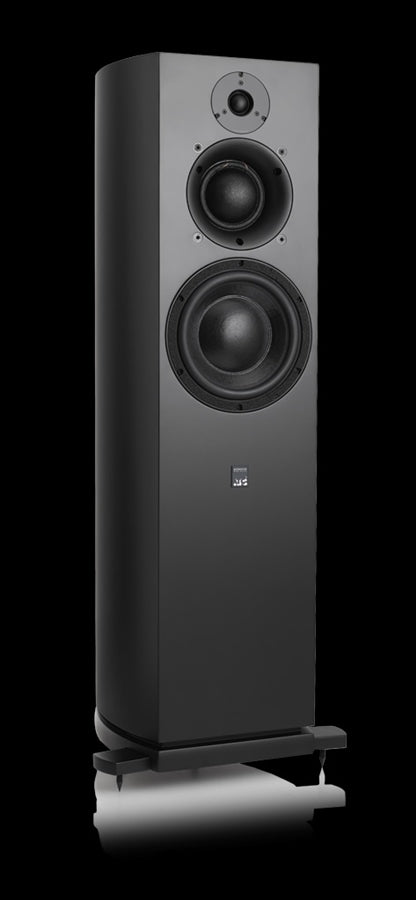

Sold as a pair, in Cherry or Black Ash veneer or Satin Black or Satin White paint, with a 6‑year warranty once registered with ATC.
TTVJ is an authorized ATC dealer. Every unit we sell is brand new, and Todd's advice comes from setting up ATC loudspeakers in real listening rooms.
Is It Right for You?
A Great Fit If You Want
- The clarity of a true three-way, with voices and the core of most instruments carried by one dedicated midrange driver.
- A speaker that is forgiving to place, with bass that tapers off gradually instead of booming near a wall.
- Floorstanding scale without a deep cabinet: at 305 mm, the shallowest of ATC's passive three-way towers.
- Room to grow: tri-wire terminals for bi-wiring or bi-amping later.
- A pair matched within ±0.5 dB, for a stable center image.
Consider Something Else If You Need
- Amplifiers built in, one per driver: the active SCM40A. See below.
- Deeper bass: the SCM50PSLT, with a 234 mm (9-inch) Super Linear driver reaching 40 Hz, for an amplifier of 100 W or more.
- Deeper bass than 48 Hz in this system: add ATC's C4 Sub Mk2 subwoofer, which takes a line-level feed, so your preamp or integrated amplifier needs a pre-out.
- A low-powered amplifier: at 85 dB sensitivity, the SCM40 needs real power.
- A warm, forgiving sound: the SCM40 is lean and exact, so weak recordings and sources show their flaws.
Design
75 mm Soft-Dome Midrange
ATC's 75 mm soft dome covers 380 Hz to 3.5 kHz on its own, the band that carries the core of voices and most instruments, so neither the bass driver nor the tweeter has to stretch into it.
Tweeter and Bass Driver
The 25 mm neodymium soft-dome tweeter has a dual suspension and a precision alloy waveguide. The 164 mm short-coil bass driver sits in a massive, optimized motor assembly and reaches 48 Hz (−6 dB).
Sealed Cabinet
The cabinet is sealed rather than ported. That costs some sensitivity, but it means no port noise, a gradual bass roll-off and fewer problems when the speakers sit nearer a wall. Each cabinet stands on a foot plinth.
Amplifier and Connections
Amplifier Matching
Sensitivity is 85 dB into an easy 8 Ω nominal load: the load won't trouble an amplifier, but the speaker needs power. ATC recommends 75 to 300 W, and 100 W or more continuous for the best results; an underpowered amplifier driven into distortion can damage the speakers. Valve or other high-output-impedance amplifiers can loosen control of the bass, so audition one before committing.
Tri-Wire Terminals
Each speaker has three pairs of terminals joined by linking bars. Leave the bars in for a single cable; remove them to bi-wire or tri-wire, or to drive the bass separately from the mid and treble. The bass pair sits nearest the bottom of the panel, and the terminals take bare wire or 4 mm banana plugs. To bi-amp, use amplifiers of equal gain, with the most powerful one on the bass.
SCM40 vs SCM40A
What Differs
Both use ATC's 75 mm soft-dome midrange and 164 mm short-coil bass driver with crossover points at 380 Hz and 3.5 kHz, cover 48 Hz to 22 kHz, play to 112 dB, and share the 980 mm height, 370 mm width and four finishes. They differ in how they are driven:
| Feature | SCM40 | SCM40A |
|---|---|---|
| Amplification | Your own, 75 to 300 W | Built in, 242 W (150 + 60 + 32 W) |
| Crossover | Passive | Active, 4th order |
| What you connect | Speaker cable to tri-wire terminals | A preamp or source with volume control (XLR, 1 V), plus mains power |
| Sensitivity / load | 85 dB, 8 Ω | Not applicable (active) |
| Depth | 305 mm | 344 mm (with amplifier) |
| Weight | 31 kg | 36 kg |
SCM40 vs Other ATC Passive Towers
SCM20PSLT, SCM40 and SCM50PSLT
| Feature | SCM20PSLT | SCM40 | SCM50PSLT |
|---|---|---|---|
| Design | 2-way passive, sealed | 3-way passive, sealed | 3-way passive, ported |
| Bass driver | 150 mm Super Linear | 164 mm short coil | 234 mm Super Linear |
| Midrange | None (2-way) | 75 mm soft dome | 75 mm soft dome |
| Response (−6 dB) | 55 Hz to 25 kHz | 48 Hz to 22 kHz | 40 Hz to 25 kHz |
| Sensitivity | 85 dB | 85 dB | 85 dB |
| Recommended amplifier | 75 to 300 W | 75 to 300 W | 100 to 1,500 W |
| Max. SPL | 108 dB continuous, per pair | 112 dB | 112 dB continuous, 1 m |
| Size (H × W × D) | 990 × 239 × 344 mm | 980 × 370 × 305 mm | 1,003 × 304 × 470 mm |
| Weight | 24.7 kg | 31 kg | 45.5 kg |
| Connections | Bi-wire | Tri-wire | TBA |
Choose the SCM20PSLT If You
- Want the narrowest, lightest tower of the three: a sealed two-way 239 mm wide and 24.7 kg.
Choose the SCM40 If You
- Want the only tri-wire option of the three, in a sealed three-way that runs from 75 W where the SCM50PSLT needs 100 W.
Choose the SCM50PSLT If You
- Want the deepest bass of the three, 40 Hz from a 234 mm (9-inch) Super Linear driver, and have an amplifier of 100 W or more.
Available Finishes
Choose Your Finish
| Veneers | Cherry, Black Ash |
|---|---|
| Paints | Satin Black, Satin White |
Setup
Placement and Installation
- Placement: start about 1 m (3 ft) from the side walls and 2 m (6.5 ft) from the wall behind, and keep them out of corners. If the bass sounds light, move them gradually closer to the wall behind.
- The two speakers and your seat should form an equilateral triangle, with the midrange dome at or close to ear level.
- Spikes: four M8 × 1.25 mm spikes per cabinet, adding 25 mm to the height.
- Cable: at least 2.5 mm² (about 13 AWG), 79-strand, per conductor, and a significantly heavier gauge for runs over 5 m (16 ft).
Specifications
ATC SCM40
| Type | 3-way passive floorstanding loudspeaker, sealed cabinet |
|---|---|
| Drivers | HF ATC 25 mm neodymium dual-suspension soft dome with precision alloy waveguide; Mid ATC 75 mm soft dome; LF ATC 164 mm SC (short coil) |
| Matched response | ±0.5 dB |
| Frequency response | 48 Hz to 22 kHz (−6 dB) |
| Dispersion | ±80° coherent horizontal, ±10° coherent vertical |
| Sensitivity | 85 dB (1 W, 1 m) |
| Max. SPL | 112 dB |
| Recommended amplifier power | 75 to 300 W |
| Nominal impedance | 8 Ω |
| Minimum impedance | TBA |
| Crossover frequencies | 380 Hz and 3.5 kHz |
| Connections | Binding posts / 4 mm plugs, tri-wire, with linking bars |
| Dimensions (H × W × D) | 980 × 370 × 305 mm (38.58 × 14.56 × 12.01 in), including foot plinth; spikes add 25 mm to height, grille adds 34 mm to depth |
| Weight | 31 kg (68.3 lb) per speaker |
| Spikes | 4 per cabinet, M8 × 1.25 mm |
| Included (per pair) | Fabric grilles, floor spikes, terminal linking bars |
| Finishes | Veneer: Cherry, Black Ash. Paint: Satin Black, Satin White |
| Sold as | Pair |
| Warranty | 2 years; up to 6 years when registered with ATC |
| Made in | UK |
