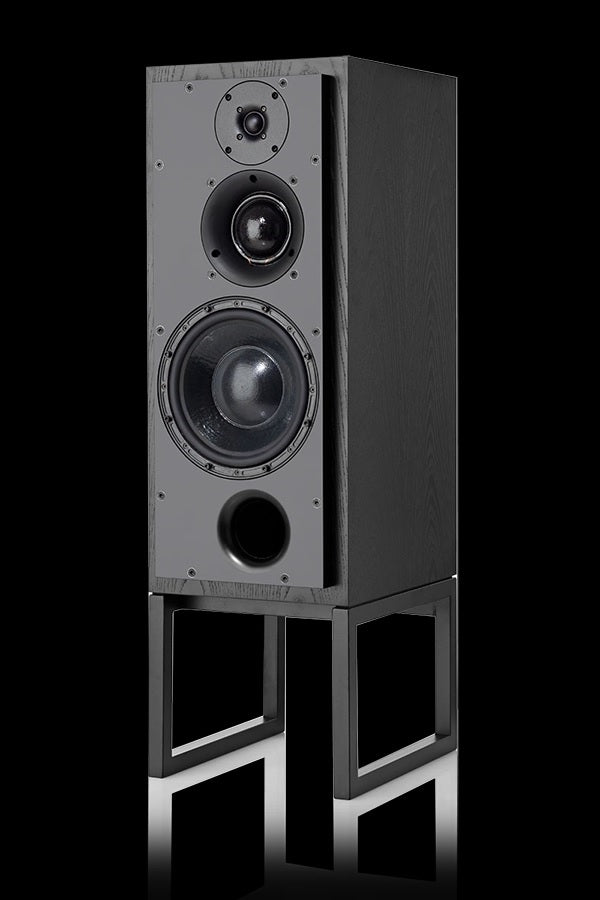

ATC SCM50ASL Active Classic: A Studio Monitor Built for the Home

ATC built the SCM50ASL for recording studios and for homes with the finest hi-fi, and it is the smallest active three-way in ATC's Classic series. Each side arrives as a complete system: a 304 mm-wide monitor, its own 250 mm stand, and three amplifiers inside the cabinet.

Because the crossover sits ahead of the amplifiers, each amplifier drives one driver and nothing else, and ATC designs and builds that whole chain itself, from the drivers to the electronics. If you already own an amplifier you love, the SCM50PSL is the passive version; if you'd rather not place stands, the SCM50ASLT is the same active system as a tower.

A pair comes with stands, grilles and floor spikes, in a choice of 14 finishes, with a 6‑year warranty once registered with ATC.

Design3-way active Classic, on stand
Amplification350 W MOSFET per speaker: 200 + 100 + 50 W
Bass234 mm Super Linear, 38 Hz (−6 dB)
Midrange75 mm soft dome, 380 Hz to 3.5 kHz
Max. SPL112 dB at 1 m
InputBalanced XLR, 1 V sensitivity

TTVJ is an authorized ATC dealer. Every unit we sell is brand new, and Todd's advice comes from setting up ATC loudspeakers in real listening rooms.

Is It Right for You?

A Great Fit If You Want

  • An all-ATC chain after your preamp: drivers, crossover and amplifiers designed and built under one roof.
  • A dedicated 75 mm soft-dome midrange for 380 Hz to 3.5 kHz, so voices and the core of most instruments come from a single driver.
  • Bass to 38 Hz from a 9-inch Super Linear driver with a 200 W amplifier to itself.
  • A narrow cabinet for a three-way: 304 mm wide.
  • Two speakers matched within ±0.5 dB, which keeps a centred voice exactly between them.

Consider Something Else If You Need

  • Your own amplifier in the system: the passive SCM50PSL. See below.
  • A single floorstanding cabinet instead of monitor and stand: the SCM50ASLT. See below.
  • A lighter, shallower active three-way: the SCM40A, 36 kg and 344 mm deep, with a 164 mm bass driver.
  • Bass reaching 32 Hz and 115 dB of output: the SCM100ASL, with a 12-inch driver.
  • Digital inputs on the speaker: it takes one balanced analog XLR input, so source switching and volume happen in your preamp or streamer.

Design

Midrange and Tweeter

ATC credits the SCM50's accuracy, transparency and dynamics mainly to its 75 mm soft-dome midrange. Above 3.5 kHz, a recently upgraded 25 mm tweeter takes over.

9-Inch Super Linear Bass

A 234 mm (9-inch) driver reaching 38 Hz (−6 dB). Its Super Linear motor adds rings of special magnetic material to tame the distortion ordinary steel introduces; ATC's figure for the technology is 10 to 15 dB less third-harmonic distortion between 100 Hz and 3 kHz.

Classic Cabinet

The ported cabinet is 717 mm tall, and the supplied 250 mm stand lifts it to 967 mm overall; the amplifier pack at the back brings the depth to 480 mm. ATC reshaped the port when it upgraded the tweeter, and says the two changes improved every aspect of performance.

Built-In Amplification

Three Amplifiers, Active Crossover

Each driver has its own individually matched MOSFET amplifier: 200 W for the bass driver, 100 W for the midrange and 50 W for the tweeter. ATC's active crossover divides the signal at 380 Hz and 3.5 kHz before it reaches them, and its balanced input stage, with wide bandwidth, very low distortion and high common-mode rejection, keeps hum and interference picked up along the cable out of the music. If the amplifiers are overdriven, they briefly turn their gain down.

What You Connect

Signal

Each speaker has one balanced XLR input (1 V sensitivity, input impedance above 10 kΩ). Volume is set upstream, so connect a preamp, or a DAC or streamer with volume control. Balanced cables are best. For an unbalanced source with XLR-to-RCA cables, ask Todd which wiring suits your preamp.

Power

Each speaker needs an earthed (three-prong) mains connection. ATC sets the mains voltage at the factory for your country, and power consumption is 90 W nominal, up to 350 W when driven.

The Four SCM50 Versions

What Differs

All four use the same drivers: ATC's 75 mm soft-dome midrange, a 9-inch Super Linear bass driver and a 25 mm tweeter, in a cabinet 304 mm wide, with 112 dB maximum output and the same finishes. The letters in each name tell you which is which: A for active, P for passive and T for tower. TTVJ's listings use the shorter SCM50A, SCM50P, SCM50AT and SCM50PT. The four differ in cabinet and in how they are driven:

Feature SCM50ASL SCM50PSL SCM50ASLT SCM50PSLT
Cabinet Classic, on supplied stand Classic, on supplied stand Floorstanding tower Floorstanding tower
Overall height 967 mm with stand 967 mm with stand 1,003 mm 1,003 mm
Depth 480 mm (with amplifier) 425 mm 470 mm 470 mm
Weight 48.9 kg 41.1 kg 51 kg 45.5 kg
Amplification Built in, 350 W (200/100/50 W) Your own, 100 to 1,500 W Built in, 350 W (200/100/50 W) Your own, 100 to 1,500 W
Bass (−6 dB) 38 Hz 40 Hz 38 Hz 40 Hz
What you connect A preamp or source with volume control (XLR), plus mains power Speaker cable to binding posts A preamp or source with volume control (XLR), plus mains power Speaker cable to binding posts
Sensitivity / load Not applicable (active) 85 dB, 8 Ω Not applicable (active) 85 dB, 8 Ω
Included per pair 2 stands, 2 grilles, 8 spikes 2 stands, 2 grilles, 8 spikes 2 grilles, 8 spikes 2 grilles, 8 spikes

Active or Passive?

  • Active (ASL, ASLT): amplifiers built in, one per driver, and bass to 38 Hz.
  • Passive (PSL, PSLT): your own amplifier, from 100 to 1,500 W.

Classic or Tower?

  • Classic (ASL, PSL): a 717 mm monitor on its own 250 mm stand, 967 mm tall overall.
  • Tower (ASLT, PSLT): a single 1,003 mm cabinet on spikes, with no separate stand.

SCM50ASL vs Other ATC Active Three-Ways

SCM40A, SCM50 and SCM100

Feature SCM40A SCM50ASL SCM100ASL
Format Floorstanding tower Classic, on stand Classic, on stand
Bass driver 164 mm short coil 234 mm Super Linear 314 mm Super Linear
Midrange / tweeter 75 mm soft dome / 25 mm 75 mm soft dome / 25 mm 75 mm soft dome / 25 mm
Amplification Built in, 242 W (150/60/32 W) Built in, 350 W (200/100/50 W) Built in, 350 W (200/100/50 W)
Bass (−6 dB) 48 Hz 38 Hz 32 Hz
Max. SPL (1 m) 112 dB 112 dB 115 dB
Input Balanced XLR Balanced XLR Balanced XLR
Size (H × W × D) 980 × 370 × 344 mm 717 × 304 × 480 mm, plus 250 mm stand 834 × 400 × 585 mm, plus 200 mm stand
Weight 36 kg 48.9 kg 58.5 kg with stand

Choose the SCM40A If You

  • Want a lighter, shallower tower, 36 kg and 344 mm deep, and are happy with bass to 48 Hz.

Choose the SCM50ASL If You

  • Want bass to 38 Hz from a 9-inch Super Linear driver in the narrowest cabinet of the three, 304 mm wide.

Choose the SCM100ASL If You

  • Want deeper bass and more output: 32 Hz and 115 dB from a 12-inch driver.

Not Sure Which to Choose?

Weighing the SCM50ASL against the other SCM50 versions, or against the SCM40A or SCM100ASL? Todd can talk it through with you.

Available Finishes

Choose Your Finish

Standard veneers Cherry, Walnut, Oak, Black Ash
Standard paints Satin Black, Satin White
Premium veneers (up-charge) Rosewood, European Crown Cut Walnut, Pippy Oak, Burr Magnolia, Burr Poplar
High gloss (up-charge) Clear High Gloss Veneer, Piano Black, Piano White

Setup

Placement and Installation

  • Handling: each speaker weighs 48.9 kg, so unpack and position them with a second person.
  • Placement: start about 1 m (3 ft) from the side walls and 2 m (6.5 ft) from the wall behind, and keep them out of corners. The two speakers and your seat should form an equilateral triangle.
  • Height: the midrange dome should sit at, or slightly below, ear level.
  • Spikes: eight M8 spikes with nuts come with each pair, to couple the stands to the floor.
  • Ventilation: the built-in amplifiers need air. Leave at least 80 mm (3 in) behind each speaker, and don't build it into a cabinet or alcove.
  • Power: before switching on, check that the voltage shown on each speaker matches your supply, and keep the rear power switch within reach.

Specifications

ATC SCM50ASL

Type 3-way active Classic stand-mounted loudspeaker, tri-amplified (MOSFET)
Drivers HF 25 mm ATC SH25-76S; Mid 75 mm ATC soft dome (SM75-150S); LF 234 mm Super Linear
Amplitude linearity (±2 dB) 70 Hz to 20 kHz
Frequency response (−6 dB points) 38 Hz to 25 kHz
Matched response ±0.5 dB between the two speakers of a pair
Dispersion ±80° coherent horizontal, ±10° coherent vertical
Max. continuous SPL (1 m) 112 dB
Crossover frequencies 380 Hz and 3.5 kHz (active filters)
Input XLR, balanced; 1 V sensitivity; >10 kΩ
Amplifier output LF 200 W, MF 100 W, HF 50 W RMS (350 W per speaker), MOSFET
Overload protection Active FET momentary gain reduction (amplifiers)
Power requirements 100, 115 or 230 V (factory set), 50/60 Hz; 90 W nominal, 350 W driven
Dimensions (H × W × D) 717 × 304 × 480 mm (28.23 × 11.97 × 18.89 in) including amplifiers; stands add 250 mm (9.84 in) to height
Weight 48.9 kg (107.8 lb) per speaker
Included (per pair) 2 speaker stands, 2 fabric-wrapped grilles, 8 M8 × 1.25 mm stand spikes and nuts
Finishes Standard veneers, standard paints, premium veneers and high gloss; see Available Finishes
Sold as Pair
Warranty 2 years; 6 years when the warranty card is returned to ATC
Made in UK

Order Your ATC SCM50ASL Active Classic

As an authorized ATC dealer, TTVJ handles your order personally, from choosing the finish to delivery. Reach Todd by phone or message to:

  • Confirm current pricing and availability
  • Discuss a trade-in of your current speakers
  • Ask about financing and shipping
