Weiss PSU102: Clean Power for Your DAC204
The Weiss PSU102 is a universal, non-switching linear power supply, and the natural upgrade for the Weiss DAC 204 Mk2. It replaces the DAC's stock external supply with a discrete regulator of Weiss's own design, a toroidal transformer and a shielded double-frame chassis, all aimed at clean, quiet and stable power. Use it with the DAC204: the cable is included.
It is very low noise yet still able to drive complex loads, and it is built to the same standard as every other Weiss device. Weiss reports that DAC204 owners highlight the gains from pairing the two.
Is It Right for You?
A Great Fit If You Want
- To get more from your Weiss DAC 204 Mk2 by replacing its stock external supply.
- A linear supply with a discrete regulator, built and shielded to Weiss's own standard.
- One supply for up to two low-voltage devices that share the same voltage (each needs its own cable).
- A matching partner: at 10.5 cm wide, it's the same width as the DAC 204 Mk2.
Consider Something Else If You Need
- More than 1.5 A in total, or a voltage other than 5, 6, 9 or 12 V.
- Two devices at different voltages: both outputs always carry the same voltage.
- A ready-made cable for a non-Weiss device: the included cable is for the DAC204; other devices need a cable with the matching plug.
Compatibility and Setup
What It Powers
| Weiss DAC 204 Mk2 (and original DAC204) | Set the PSU102 to 6 or 9 V. The DAC draws 1050 mA at 6 V or 700 mA at 9 V. Cable included. |
|---|---|
| Weiss DAC 205 Mk2 (and original DAC205) | Weiss offers the PSU102 as an option for the DAC205 too. It takes 6 to 9 V and the DAC 205 Mk2 draws 900 mA at 6 V or 600 mA at 9 V. Ask Todd about the cable. |
| Weiss INT204 USB interface | Runs on 6 to 9 V DC from an external supply. Ask Todd about using it with the PSU102 and the right cable. |
| Other devices | Any device that runs on 5, 6, 9 or 12 V DC and draws no more than 1.5 A, with a cable that has the right plug. The output sockets take Fischer S 102 A051-130+ plugs with the E3 102.5/3.5 cable clamp. |
Two Outputs, One Voltage
The two Fischer output sockets are wired in parallel, so both carry the voltage you select and share the 1.5 A rating. Two devices can run from one PSU102 if they need the same voltage and their combined draw stays under 1.5 A. At 9 V, for example, a DAC 204 Mk2 (700 mA) and a DAC 205 Mk2 (600 mA) together draw 1.3 A; at 6 V they would need 1.95 A, which is too much. The second device needs its own cable, so ask Todd.
Mains and Safety
One IEC power inlet with an integrated on/off switch, a primary fuse and a 115 V / 230 V selector covers 100 to 120 V and 200 to 240 V mains. The outputs are short-circuit proof, and a green front-panel LED shows when the unit is on.
Design
Electronics
A discrete, non-switching, linear voltage regulator of Weiss's own design is very low in noise yet fast enough to follow high-frequency load fluctuations. The electrolytic capacitors are low-ESR types, and the toroidal mains transformer keeps magnetic radiation and noise low.

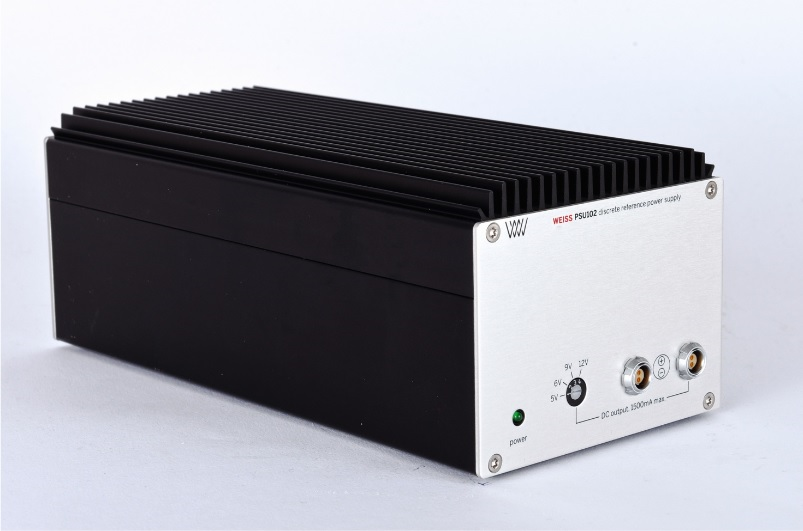

Twin-Frame Mechanical Design
An inner steel chassis acts as a very effective shield against electrostatic and electromagnetic radiation and adds safety. The outer frame of massive anodized aluminum adds further shielding, helps heat convection and looks beautiful. The integrated heat sink is oversized by a decent margin.
Specifications
Weiss PSU102
| Type | Universal, non-switching linear (analog) power supply with discrete voltage regulator |
|---|---|
| Output voltage | 5, 6, 9 or 12 V, set by a four-position front-panel switch |
| Output current | Up to 1.5 A, both outputs combined; short-circuit proof |
| Outputs | Two Fischer two-pin sockets, wired in parallel |
| Mating plug | Fischer S 102 A051-130+ with E3 102.5/3.5 cable clamp |

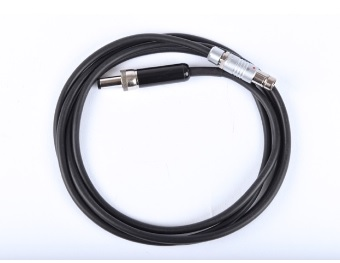

| Included | Cable for the Weiss DAC204 |
| Transformer | Toroidal mains transformer |
| Capacitors | Low-ESR electrolytics |
| Mains voltage | 100 to 120 V or 200 to 240 V (115 V / 230 V selector) |
| Fuse | 500 mA slow blow at 115 V; 250 mA slow blow at 230 V |
| Power consumption | 30 VA max. |

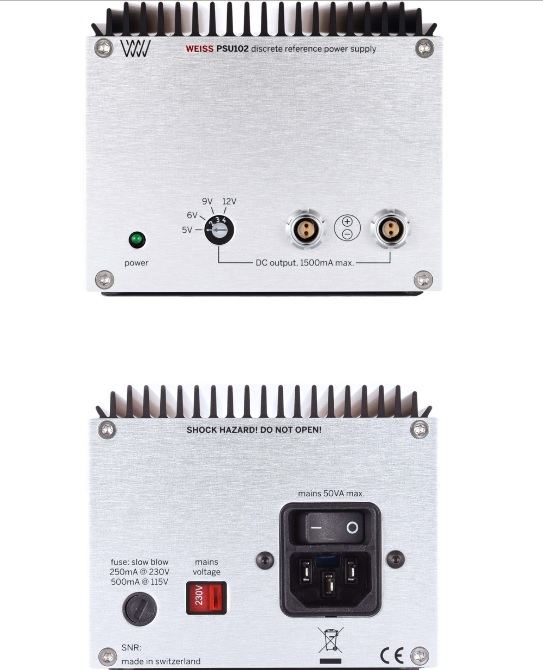

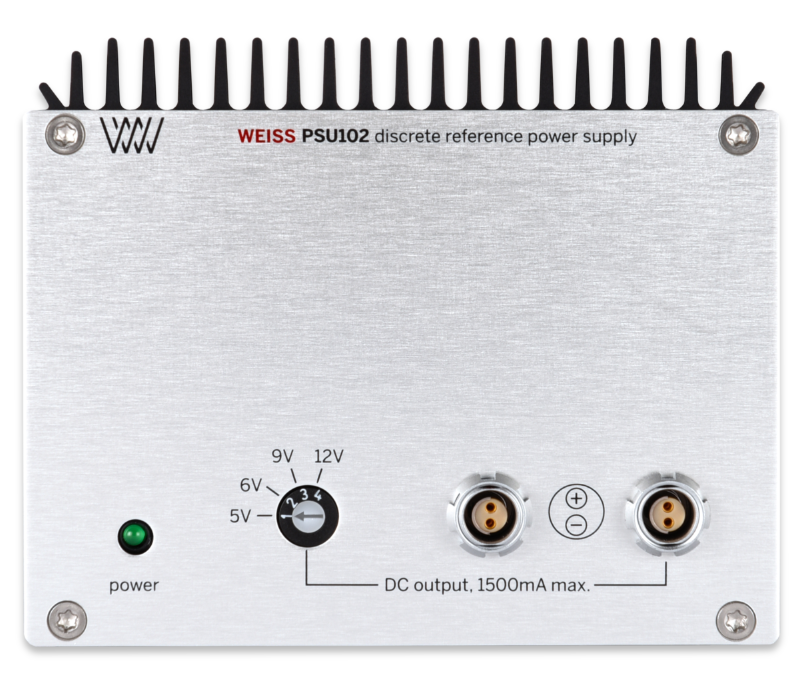

| Front panel | Green power LED; four-position output voltage switch; two Fischer output sockets |
| Rear panel | Primary fuse; 230 V / 115 V selector; IEC socket with integrated power switch |
| Chassis | Inner steel frame, outer anodized aluminum shell; oversized integrated heat sink |
| Dimensions (W × H × D) | 10.5 × 8.6 × 22.5 cm |
