Collection: Kuzma Cartridges
Here you will find Kuzma MC Phono Cartridges!
Kuzma phono cartridges are low‑output moving‑coil designs that pair precision engineering with a deliberately synergistic relationship to Kuzma’s own tonearms and turntables. The CAR-20H is the exception being a high output MC Cartridge.
The CAR series uses heavily machined aluminum and brass bodies to create a rigid, inert platform that minimizes unwanted resonance and lets the diamond tip trace the groove with high accuracy and low distortion. Models such as the CAR‑30, CAR‑40, CAR‑50, and diamond‑cantilever CAR‑70 progressively refine materials (boron, then diamond cantilevers, micro‑ridge styli) and build quality, delivering extended bandwidth, excellent channel balance, and controlled tracking force around 2.0–2.1 g.
Sonomically, Kuzma cartridges are known for their solid, three‑dimensional imaging, weighty midrange, and taut bass, often described as coherent and musically grounded rather than etched or overly analytical. This combination of mechanical rigor and tonal balance makes them a favored choice for high‑end analog systems that prioritize natural timbre and dynamic authority over mere “detail.”
| New Model Number | CAR-20 | CAR 20H | CAR-30 | CAR-40 | CAR-50 | CAR-60 | CAR-70 | |
| Type | Condition | Moving Coil | Moving Coil | Moving Coil | Moving Coil | Moving Coil | Moving Coil | Moving Coil |
| Coil Wire | STD Copper | STD Copper | 5N Copper | 4N Silver | 4N Silver | 4N Silver | 4N Silver | |
| Cantilever material | Aluminum | Aluminum | Boron | Boron | Sapphire | Diamond | Diamond with tip in one piece | |
| Housing material | Aluminium/brass | Aluminium/brass | Aluminium/brass | Aluminium/brass | Aluminium/brass | Aluminium/brass | Sapphire* | |
| Stylus | Synthetic Elliptical | Synthetic Elliptical | Microridge | Microridge | Microridge | Microridge | Microridge | |
| Frequency Response | 10Hz-33kHz | 10Hz-30kHz | 10Hz-35kHz | 10Hz-40kHz | 10Hz-45kHz | 10Hz-45kHz | 10Hz-45kHz | |
| Samarium cobalt magnet | yes | yes | yes | yes | yes | yes | yes | |
| Output Voltage | 3.54cm/1KHz | 0.3mv | 2mV! | 0.3mv | 0.3mv | 0.3mv | 0.3mV | 0,3mV |
| Channel Balance | 1KHz | <1dB | < 1.5dB | <1dB | <1dB | <1dB | < 1dB | < 1dB |
| Channel Separation | 1KHz | >23dB | > 20dB | >25dB | >28dB | >30dB | >30dB | >30dB |
| Tracking Force | gr | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| Compliance | cm/dyne | 8x10-6 | 8x10-6 | 10x10-6 | 10x10-6 | 10x10-6 | 10x10-6 | 10x10-6 |
| Trackability | 2.0 g | >70μm | >60μm | >70μm | >70μm | >70μm | >70μm | >70μm |
| Impedance | 4Ω | 130Ω | 4Ω | 6Ω | 6Ω | 6Ω | 6Ω | |
| Load Impedance | <100Ω | 47 kOhm | <100Ω | <100Ω | <100Ω | <100Ω | <100Ω | |
| Net Weight | 17 g | 17 g | 17 g | 17g | 17g | 17g | 17g |
-
Kuzma CAR 70 MC Phono Cartridge
Regular price $43,000.00 USDRegular priceSale price $43,000.00 USD -

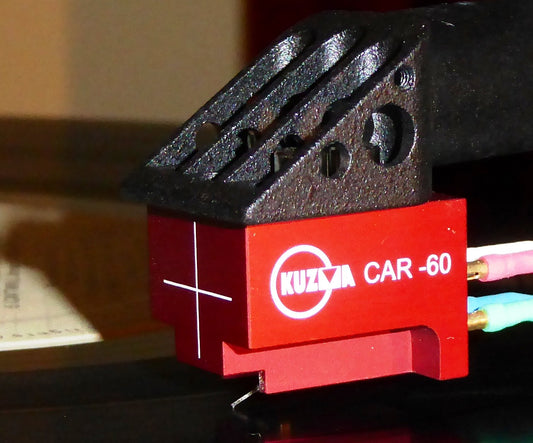

Kuzma CAR 60 MC Phono Cartridge
Regular price $20,065.00 USDRegular priceSale price $20,065.00 USD -

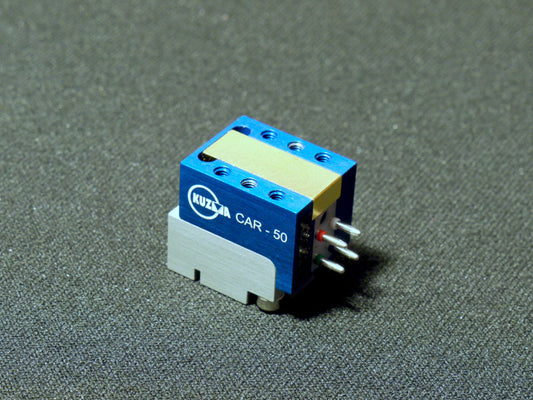

Kuzma CAR 50 MC Phono Cartridge
Regular price $10,340.00 USDRegular priceSale price $10,340.00 USD -
Kuzma CAR 40 MC Phono Cartridge
Regular price $4,570.00 USDRegular priceSale price $4,570.00 USD -

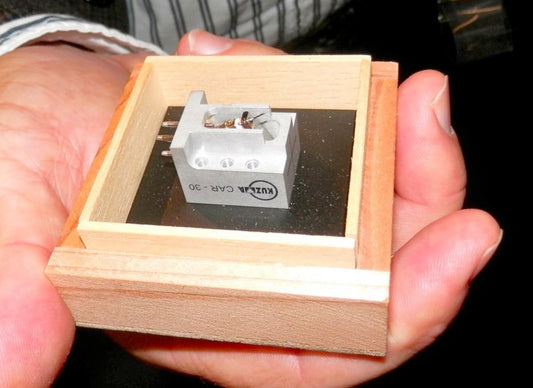

Kuzma CAR 30 MC Phono Cartridge
Regular price $3,535.00 USDRegular priceSale price $3,535.00 USD -

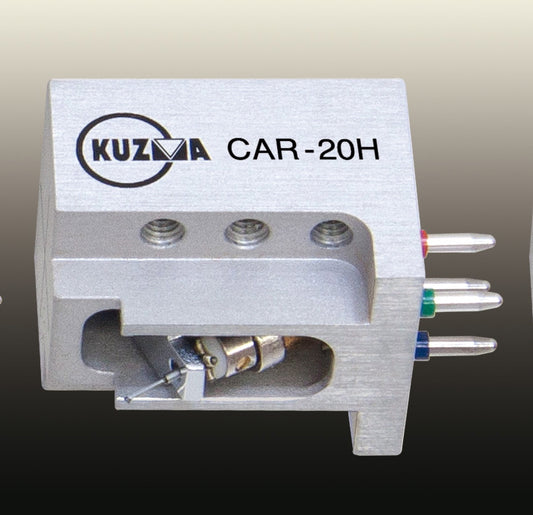

Kuzma CAR 20 Low and High Output MC Phono Cartridge
Regular price $2,995.00 USDRegular priceSale price $2,995.00 USD
Contact us now for expert advice on the best components for your audiophile system!
